topology/volBreadthFirstTraversal.cpp

Examples of breadth-first traversal on a digital surface You can use these commands:

* # Commands * $ ./examples/topology/volBreadthFirstTraversal ../examples/samples/lobster.vol 50 255 * $ ./examples/topology/volBreadthFirstTraversal ../examples/samples/cat10.vol 1 255 *

to get these pictures:

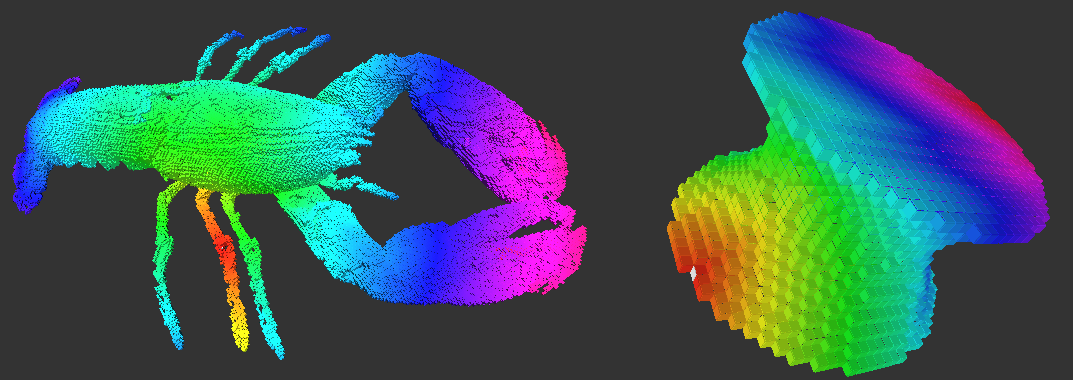

Examples of breadth-first traversal on a digital surface.
#include <iostream>
#include <queue>
#include "DGtal/io/readers/VolReader.h"
#include "DGtal/io/Color.h"
#include "DGtal/io/colormaps/HueShadeColorMap.h"
#include "DGtal/io/viewers/PolyscopeViewer.h"
#include "DGtal/images/ImageSelector.h"
#include "DGtal/images/imagesSetsUtils/SetFromImage.h"
#include "DGtal/shapes/Shapes.h"
#include "DGtal/helpers/StdDefs.h"
#include "DGtal/topology/DigitalSurface.h"
#include "DGtal/topology/LightImplicitDigitalSurface.h"
using namespace std;
using namespace DGtal;
using namespace Z3i;
void usage( int, char** argv )
{
std::cerr << "Usage: " << argv[ 0 ] << " <fileName.vol> <minT> <maxT>" << std::endl;
std::cerr << "\t - displays the boundary of the shape stored in vol file <fileName.vol>." << std::endl;
std::cerr << "\t - voxel v belongs to the shape iff its value I(v) follows minT <= I(v) <= maxT." << std::endl;
}
int main( int argc, char** argv )
{
if ( argc < 4 )
{
usage( argc, argv );
return 1;
}
std::string inputFilename = argv[ 1 ];
unsigned int minThreshold = atoi( argv[ 2 ] );
unsigned int maxThreshold = atoi( argv[ 3 ] );
trace.beginBlock( "Reading vol file into an image." );
typedef ImageSelector < Domain, int>::Type Image;
DigitalSet set3d (image.domain());
minThreshold, maxThreshold);
trace.endBlock();
trace.beginBlock( "Construct the Khalimsky space from the image domain." );
KSpace ks;
bool space_ok = ks.init( image.domain().lowerBound(),
image.domain().upperBound(), true );
if (!space_ok)
{
trace.error() << "Error in the Khamisky space construction."<<std::endl;
return 2;
}
trace.endBlock();
typedef SurfelAdjacency<KSpace::dimension> MySurfelAdjacency;
MySurfelAdjacency surfAdj( true ); // interior in all directions.
trace.beginBlock( "Set up digital surface." );
SCell bel = Surfaces<KSpace>::findABel( ks, set3d, 100000 );
MyDigitalSurfaceContainer* ptrSurfContainer =
new MyDigitalSurfaceContainer( ks, set3d, surfAdj, bel );
MyDigitalSurface digSurf( ptrSurfContainer ); // acquired
trace.endBlock();
trace.beginBlock( "Extracting boundary by tracking from an initial bel." );
typedef BreadthFirstVisitor<MyDigitalSurface> MyBreadthFirstVisitor;
typedef MyBreadthFirstVisitor::Node MyNode;
typedef MyBreadthFirstVisitor::Size MySize;
MyBreadthFirstVisitor visitor( digSurf, bel );
unsigned long nbSurfels = 0;
MyNode node;
while ( ! visitor.finished() )
{
node = visitor.current();
++nbSurfels;
visitor.expand();
}
MySize maxDist = node.second;
trace.endBlock();
trace.beginBlock( "Displaying surface in PolyscopeViewer." );
PolyscopeViewer<> viewer;
MyBreadthFirstVisitor visitor2( digSurf, bel );
viewer << Color::White
<< ks.unsigns( bel );
visitor2.expand();
while ( ! visitor2.finished() )
{
node = visitor2.current();
viewer << WithQuantity(ks.unsigns(node.first), "value", node.second);
visitor2.expand();
}
trace.info() << "nb surfels = " << nbSurfels << std::endl;
trace.endBlock();
viewer.show();
return 0;
}
