3DCompSurfelData

Computes generic scalar surfel data comparisons (squared error) (given from an input data file and from a reference one).

Usage: 3dCompSurfelData [input] [reference]

Allowed options are:

Positionals:
1 TEXT:FILE REQUIRED input file: sdpa (sequence of discrete points with attribute)
s TEXT:FILE input file: sdpa (sequence of discrete points with attribute)
Optionals:
-h,--help Print this help message and exit
-i,--input TEXT:FILE REQUIRED input file: sdpa (sequence of discrete points with attribute)
-r,--reference TEXT:FILE REQUIRED input file: sdpa (sequence of discrete points with attribute)
-l,--compAccordingLabels apply the comparisos only on points with same labels (by default fifth colomn)
-a,--drawSurfelAssociations Draw the surfel association.
-o,--fileMeasureOutput TEXT specify the output file to store (append) the error stats else the result is given to std output.
-n,--noWindows Don't display Viewer windows.
-d,--doSnapShotAndExit TEXT save display snapshot into file. Notes that the camera setting is set by default according the last saved configuration (use SHIFT+Key_M to save current camera setting in the Viewer3D).
--fixMaxColorValue FLOAT fix the maximal color value for the scale error display (else the scale is set from the maximal value)
--labelIndex UINT set the index of the label (by default set to 4)
--SDPindex UINT x 4 specify the sdp index (by default 0,1,2,3).

Example:

To use this tools we need first to have two differents surfel set with an attribute to be compared. We can use for instance the curvature from the sample file of DGtal/examples/samples/cat10.vol:

# generating another input vol file using tutorial example (eroded.vol):
$ $DGtal/build/examples/tutorial-examples/FMMErosion
# Estimate curvature using other DGtalTools program:
$ 3dCurvatureViewer -i $DGtal/examples/samples/cat10.vol -r 3 --exportOnly -d curvatureCat10R3.dat
$ 3dCurvatureViewer -i eroded.vol -r 3 --exportOnly -d curvatureCat10ErodedR3.dat

Now we compare the different curvature values from the two shapes:

./visualisation/3dCompSurfelData curvatureCat10ErodedR3.dat curvatureCat10R3.dat --fixMaxColorValue 1.0 -o statMeasures.dat

You should obtain such a visualisation:

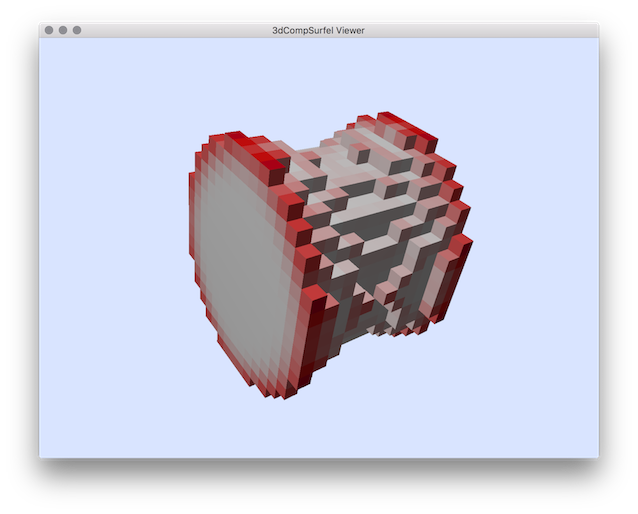

resulting visualisation of curvature comparison.
See also
3dCompSurfelData.cpp 3dCurvatureViewer
