2dCompImage

Compare images and displays differences (squared and absolute differences).

Usage: 2dCompImage <imageA>.pgm <imageB>.pgm –imageError <name>

Allowed options are :

Positionals:
  1 TEXT:FILE REQUIRED                  Input filename of image A.
  2 TEXT:FILE REQUIRED                  Input filename of image B.

Options:
  -h,--help                             Print this help message and exit
  -a,--imageA TEXT:FILE REQUIRED        Input filename of image A.
  -b,--imageB TEXT:FILE REQUIRED        Input filename of image B.
  -e,--imageError TEXT                  Output error image basename (will generate two images <basename>MSE.ppm and <basename>MAE.ppm).
  -S,--setMaxColorValueMSE INT          Set the maximal color value for the scale display of MSE (else the scale is set the maximal MSE value).
  -A,--setMaxColorValueMAE INT          Set the maximal color value for the scale display of MAE (else the scale is set from the maximal MAE value).

Example: Typical use example:

2dCompImage  imageA.pgm imageB.pgm -e errorImage -S 100

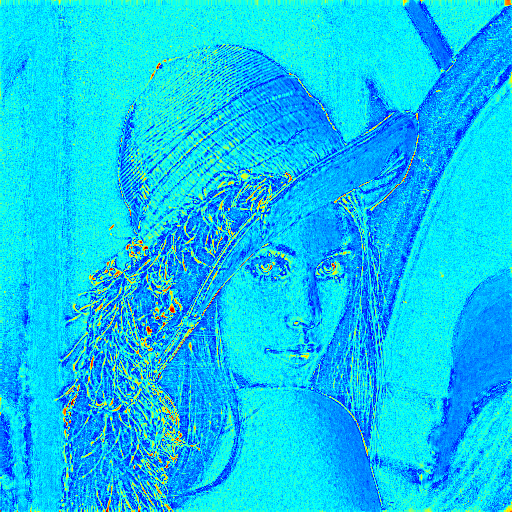

You should obtain such a visualisation:

resulting visualisation of absolute error between two images.

See also

2dCompImage.cpp
