3dVolBoundaryViewer

Display the boundary of a volume file by using QGLviewer.

The mode specifies if you wish to see surface elements (BDRY), the inner voxels (INNER) or the outer voxels (OUTER) that touch the boundary.

Usage: 3dVolBoundaryViewer -i [input]

Allowed options are :

Positionals:
1 TEXT:FILE REQUIRED                  vol file (.vol, .longvol .p3d, .pgm3d and if WITH_ITK is selected: dicom, dcm, mha, mhd). For longvol, dicom, dcm, mha or mhd formats, the input values are linearly scaled between 0 and 255.

Options:
-h,--help                             Print this help message and exit
-i,--input TEXT:FILE REQUIRED         vol file (.vol, .longvol .p3d, .pgm3d and if WITH_ITK is selected: dicom, dcm, mha, mhd). For longvol, dicom, dcm, mha or mhd formats, the input values are linearly scaled between 0 and 255.
-m,--thresholdMin INT=0               threshold min (excluded) to define binary shape.
-M,--thresholdMax INT=255             threshold max (included) to define binary shape.
--mode TEXT:{INNER,OUTER,BDRY}=INNER  set mode for display: INNER: inner voxels, OUTER: outer voxels, BDRY: surfels
OUTER: outer voxels, BDRY: surfels

Example:

3dVolBoundaryViewer  $DGtal/examples/samples/lobster.vol -m 60

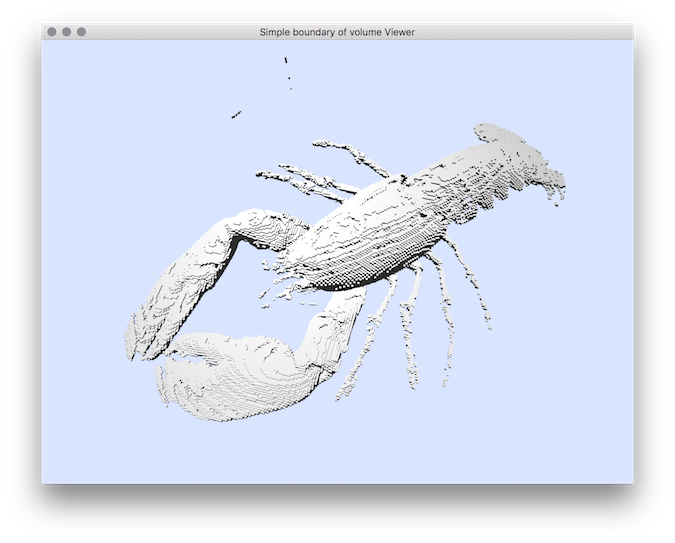

You should obtain such a result:

Resulting visualization.

See also

3dVolBoundaryViewer.cpp
