DGtal 2.0.0
io/meshFromOFF.cpp

Example of OFF file importation and display.

See also
Import 3D mesh from OFF file

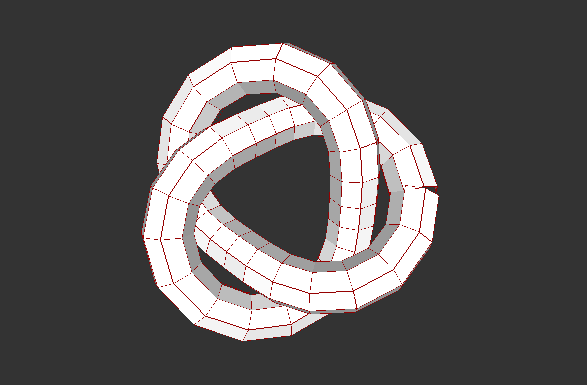

Visualisation of the sample/tref.off file
#include "DGtal/io/readers/MeshReader.h"
#include "DGtal/io/Display3D.h"
#include "DGtal/io/viewers/PolyscopeViewer.h"
#include "DGtal/base/Common.h"
#include "DGtal/io/Color.h"
#include "ConfigExamples.h"
using namespace std;
using namespace DGtal;
int main( int argc, char** argv )
{
PolyscopeViewer<> viewer;
std::string inputFilename = examplesPath + "samples/tref.off";
// Since the input points are not necessary integers we use the PointD3D from Display3D.
Mesh<Viewer3D<>::RealPoint> anImportedMesh;
anImportedMesh << inputFilename;
trace.info()<< "importating done..."<< endl;
viewer << anImportedMesh;
viewer.show();
return 0;
}
Aim: This class is defined to represent a surface mesh through a set of vertices and faces....
Definition Mesh.h:92
void show() override
Starts the event loop and display of elements.
DGtal is the top-level namespace which contains all DGtal functions and types.
Trace trace
STL namespace.
int main()
Definition testBits.cpp:56
