io/viewers/demo-kernel-2.cpp

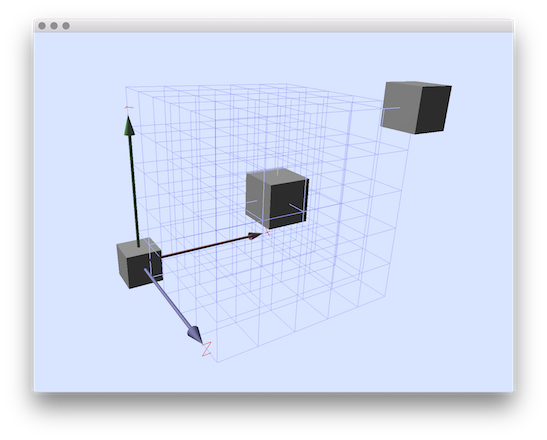

Example of Domain and Point display in PolyscopeViewer.

See also

Display3D: a stream mechanism for displaying 3D DGtal objects






#include <iostream>

#include "DGtal/base/Common.h"
#include "DGtal/kernel/SpaceND.h"
#include "DGtal/helpers/StdDefs.h"
#include "DGtal/kernel/domains/HyperRectDomain.h"
#include "DGtal/io/boards/Board2D.h"
#include "DGtal/io/viewers/PolyscopeViewer.h"


using namespace std;
using namespace DGtal;


int main( int argc, char** argv )
{
  typedef DGtal::SpaceND<3, DGtal::int32_t> MySpace;
  typedef MySpace::Point MyPoint;
  typedef HyperRectDomain<MySpace> MyDomain;
  MyPoint p1( 0, 0, 0 );
  MyPoint p2( 5, 5 ,5 );
  MyPoint p3( 2, 3, 4 );
  MyDomain domain( p1, p2 );
  PolyscopeViewer<> viewer; // for 3D visualization
  viewer << domain;
  viewer << p1 << p2 << p3;
  viewer.show();
  return 0;
}
//                                                                           //
