2dCompImage

Compare images and displays differences (squared and absolute differences).

Usage: 2dCompImage –imageA <imageA>.pgm –imageB <imageB>.pgm –imageError <name>

Allowed options are :

-h [ --help ]                    display this message
-a [ --imageA ] arg              Input filename of image A.
-b [ --imageB ] arg              Input filename of image B.
-e [ --imageError ] arg          Output error image basename (will generate
                                 two images <basename>MSE.ppm and
                                 <basename>MAE.ppm).
-S [ --setMaxColorValueMSE ] arg Set the maximal color value for the scale
                                 display of MSE (else the scale is set the
                                 maximal MSE value).
-A [ --setMaxColorValueMAE ] arg Set the maximal color value for the scale
                                 display of MAE (else the scale is set from
                                 the maximal MAE value).

Example: Typical use example:

2dCompImage -a imageA.pgm -b imageB.pgm -e errorImage -S 100

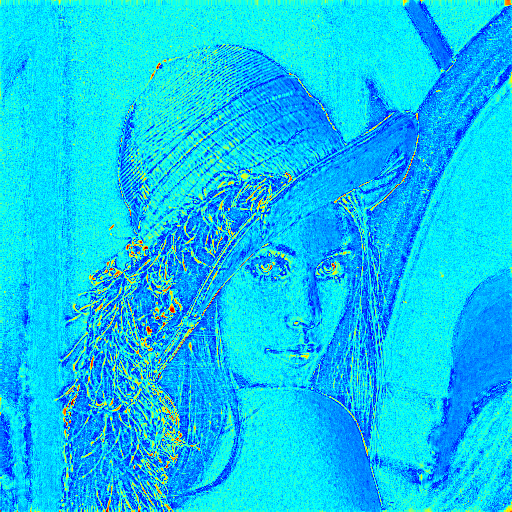

You should obtain such a visualisation:

resulting visualisation of absolute error between two images.

See also

2dCompImage.cpp
