3DSDPViewer

Displays a sequence of 3d discrete points by using QGLviewer.

Usage: 3DSDPViewer [options] input

Allowed options are :

-h [ --help ]                         display this message
 -i [ --input ] arg                    input file: sdp (sequence of discrete
                                       points)
 --SDPindex arg                        specify the sdp index (by default
                                       0,1,2).
 -c [ --pointColor ] arg               set the color of  points: r g b a
 -l [ --lineColor ] arg                set the color of line: r g b a
 -m [ --addMesh ] arg                  append a mesh (off/obj) to the point
                                       set visualization.
 --customColorMesh arg                 set the R, G, B, A components of the
                                       colors of the mesh faces (mesh added
                                       with option --addMesh).
 --importColors                        import point colors from the input file
                                       (R G B colors should be by default at
                                       index 3, 4, 5).
 --importColorLabels                   import color labels from the input file
                                       (label index  should be by default at
                                       index 3).
 --setColorsIndex arg                  customize the index of the imported
                                       colors in the source file (used by
                                       -importColor).
 --setColorLabelIndex arg (=3)         customize the index of the imported
                                       color labels in the source file (used
                                       by -importColorLabels).
 -f [ --filter ] arg (=100)            filter input file in order to display
                                       only the [arg] percentage of the input 3D
                                       points (uniformly selected).
 --noPointDisplay                      usefull for instance to only display
                                       the lines between points.
 --drawLines                           draw the line between discrete points.
 -x [ --scaleX ] arg (=1)              set the scale value in the X direction
                                       (default 1.0)
 -y [ --scaleY ] arg (=1)              set the scale value in the Y direction
                                       (default 1.0)
 -z [ --scaleZ ] arg (=1)              set the scale value in the Z direction
                                       (default 1.0)
 --sphereResolution arg (=30)          defines the sphere resolution (used
                                       when the primitive is set to the
                                       sphere). (default resolution: 30)
 -s [ --sphereRadius ] arg (=0.20000000000000001)
                                       defines the sphere radius (used when
                                       the primitive is set to the sphere).
                                       (default value 0.2)
 --sphereRadiusFromInput               takes, as sphere radius, the 4th field
                                       of the sdp input file.
 --lineSize arg (=0.20000000000000001) defines the line size (used when the
                                       --drawLines or --drawVectors option is
                                       selected). (default value 0.2))
 -p [ --primitive ] arg (=voxel)       set the primitive to display the set of
                                       points (can be sphere, voxel (default),
                                       or glPoints (opengl points).
 -v [ --drawVectors ] arg              SDP vector file: draw a set of vectors
                                       from the given file (each vector are
                                       determined by two consecutive point
                                       given, each point represented by its
                                       coordinates on a single line.
 -u [ --unitVector ] arg (=1)          specifies that the SDP vector file
                                       format (of --drawVectors option) should
                                       be interpreted as unit vectors (each
                                       vector position is be defined from the
                                       input point (with input order) with a
                                       constant norm defined by [arg]).
 --filterVectors arg (=100)            filters vector input file in order to
                                       display only the [arg] percentage of the
                                       input vectors (uniformly selected, to
                                       be used with option --drawVectors otherwise
                                       no effect).
 --interactiveDisplayVoxCoords         by using this option the pixel
                                       coordinates can be displayed after
                                       selection (shift+left click on voxel).

Basic example:

You can display a set of 3D points with sphere primitive and lines:

$  3DSDPViewer -i $DGtal/tests/samples/sinus3D.dat -p sphere -s 0.3 --drawLines --lineSize 5

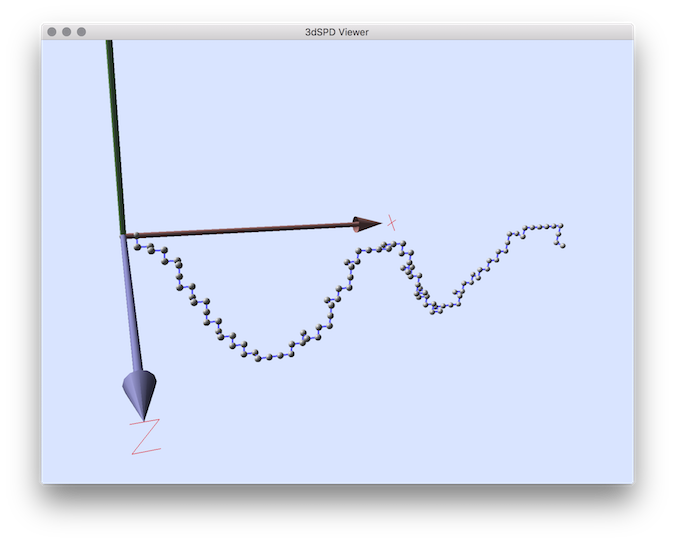

You should obtain such a result:

Resulting visualization.

Example with interactive selection :

This tool can be useful to recover coordinates from a set of voxels. To do it, you have to add the option allowing to activate the interactive selection (with –interactiveDisplayVoxCoords), for instance if you apply:

$ 3DSDPViewer -i $DGtal/tests/samples/Al100.sdp  --interactiveDisplayVoxCoords

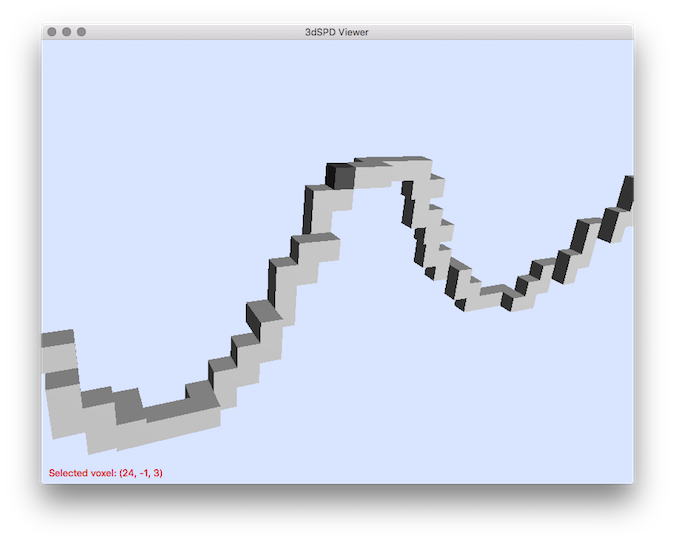

you should be able to select a voxel by using the SHIFT key and by clicking on a voxel:

Visualization of large point set

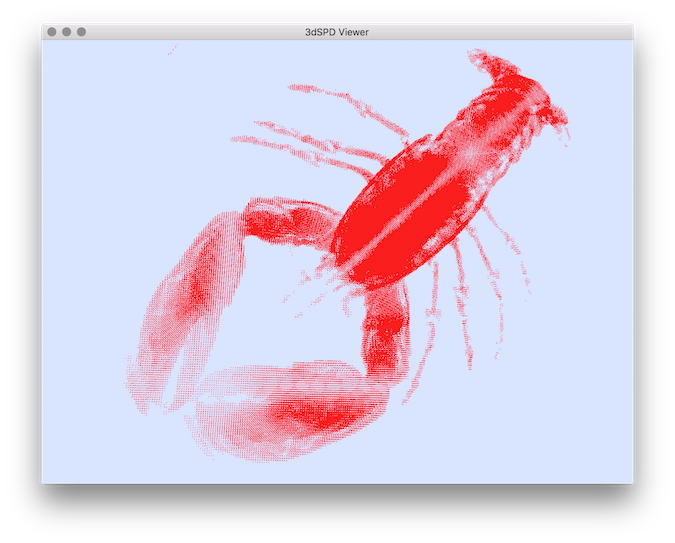

If you need to display an important number of points, you can use the primitive glPoints instead voxel or sphere (-p glPoints). You will obtain such type of a visualization:

See also

3DSDPViewer.cpp
