3dVolBoundaryViewer

Display the boundary of a volume file by using QGLviewer.

The mode specifies if you wish to see surface elements (BDRY), the inner voxels (INNER) or the outer voxels (OUTER) that touch the boundary.

Usage: 3dVolBoundaryViewer -i [input]

Allowed options are :

-h [ --help ]                    display this message
-i [ --input ] arg               vol file (.vol) , pgm3d (.p3d or .pgm3d, pgm
                                 (with 3 dims)) file or sdp (sequence of
                                 discrete points)
-m [ --thresholdMin ] arg (=0)   threshold min (excluded) to define binary
                                 shape
-M [ --thresholdMax ] arg (=255) threshold max (included) to define binary
                                 shape
--dicomMin arg (=-1000)          set minimum density threshold on Hounsfield
                                 scale
--dicomMax arg (=3000)           set maximum density threshold on Hounsfield
                                 scale
--mode arg (=INNER)              set mode for display: INNER: inner voxels,
                                 OUTER: outer voxels, BDRY: surfels

Example:

3dVolBoundaryViewer  -i $DGtal/examples/samples/lobster.vol -m 60

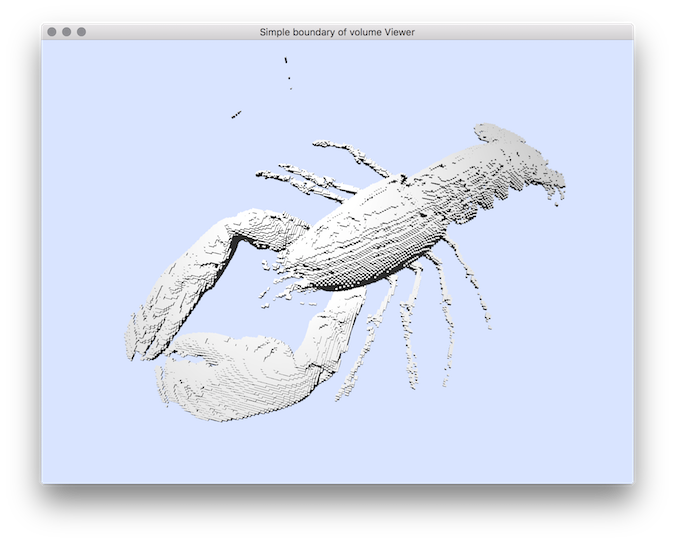

You should obtain such a result:

Resulting visualization.

See also

3dVolBoundaryViewer.cpp
