Displays discrete contours.
-h [ --help ] display this message
-i [ --input ] arg input Freeman chain file name
--SDP arg Import a contour as a Sequence of Discrete Points
(SDP format)
--SFP arg Import a contour as a Sequence of Floating Points
(SFP format)
--drawContourPoint arg <size> display contour points as disk of radius
<size>
--fillContour fill the contours with default color (gray)
--lineWidth arg (=1) Define the linewidth of the contour (SDP format)
--drawPointOfIndex arg <index> Draw the contour point of index <index>
(default 0)
--pointSize arg (=2) <size> Set the display point size of the point
displayed by drawPointofIndex option (default 2.0)
--noXFIGHeader to exclude xfig header in the resulting output
stream (no effect with option -outputFile).
--withProcessing arg Processing (used only when the input is a Freeman chain (--input)):
DSS segmentation {DSS}
Maximal segments {MS}
Faithful Polygon {FP}
Minimum Length Polygon {MLP}
-o [ --outputFile ] arg <filename> save output file automatically according
the file format extension.
-v [ --displayVectorField ] arg Add the display of a vector field
represented by two floating coordinates.
Each vector is displayed starting from the
corresponding contour point coordinates.
-v [ --scaleVectorField ] arg (=1) set the scale of the vector field (default
1) (used with --displayVectorField).
--vectorFieldIndex arg specify the vector field index (by default
0,1) (used with --displayVectorField).
--vectorFromAngle arg specify that the vectors are defined from
an angle value represented at the given
index (by default 0) (used with
--displayVectorField).
--rotateVectorField apply a CCW rotation of 90° (used with
--displayVectorField).
--outputStreamEPS specify eps for output stream format.
--outputStreamSVG specify svg for output stream format.
--outputStreamFIG specify fig for output stream format.
--invertYaxis invertYaxis invert the Y axis for display contours
(used only with --SDP)
--backgroundImage arg backgroundImage <filename> : display image as
background
--alphaBG arg alphaBG <value> 0-1.0 to display the background image
in transparency (default 1.0), (transparency works
only if cairo is available)
--scale arg scale <value> 1: normal; >1 : larger ; <1 lower
resolutions )

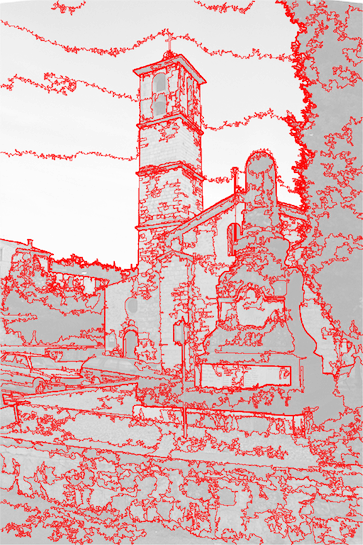

In this example we show how to display of a set of contours extracted in a single image. The first step is to extract a set contours by using the tool
Then, we display the set of contours with the background images (you need to have compiled DGTal with the options (-DWITH_MAGICK=true and -DWITH_CAIRO=true) :
