vol2heightfield

Converts volumetric file into a projected 2D image given from a normal direction N and from a starting point P.

The 3D volume is scanned in this normal direction N starting from P with a step 1. If the intensity of the 3d point is inside the given thresholds its 2D gray values are set to the current scan number.

Usage: vol2heightfield [input] [output]

Allowed options are:

-h [ --help ]                    display this message
-i [ --input ] arg               vol file (.vol, .longvol .p3d, .pgm3d and if
                                 WITH_ITK is selected: dicom, dcm, mha, mhd).
                                 For longvol, dicom, dcm, mha or mhd formats,
                                 the input values are linearly scaled between
                                 0 and 255.
-o [ --output ] arg              sequence of discrete point file (.sdp)
-m [ --thresholdMin ] arg (=128) min threshold (default 128)
-M [ --thresholdMax ] arg (=255) max threshold (default 255)
--nx arg (=0)                    set the x component of the projection
                                 direction.
--ny arg (=0)                    set the y component of the projection
                                 direction.
--nz arg (=1)                    set the z component of the projection
                                 direction.
-x [ --centerX ] arg (=0)        choose x center of the projected image.
-y [ --centerY ] arg (=0)        choose y center of the projected image.
-z [ --centerZ ] arg (=1)        choose z center of the projected image.
--width arg (=100)               set the width of the resulting height Field
                                 image.
--height arg (=100)              set the height of the resulting height Field
                                 image.
--heightFieldMaxScan arg (=255)  set the maximal scan deep.
--setBackgroundLastDepth         change the default background (black with
                                 the last filled intensity).
--rescaleInputMin arg (=0)       min value used to rescale the input
                                 intensity (to avoid basic cast into 8  bits
                                 image).
--rescaleInputMax arg (=255)     max value used to rescale the input
                                 intensity (to avoid basic cast into 8 bits
                                 image).

Example:

$ vol2heightfield -i ${DGtal}/examples/samples/lobster.vol -m 60 -M 500  --nx 0 --ny 0.7 --nz -1 -x 150 -y 0 -z 150 --width 300 --height 300 --heightFieldMaxScan 350  -o resultingHeightMap.pgm

You should obtain such a resulting image:

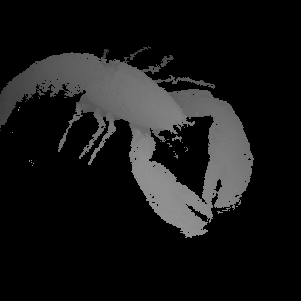

resulting image.

See also

vol2heightfield.cpp
