volBoundary2obj

Extracts digital points from 3d vol files.

Usage: volBoundary2obj [input] [output]

Allowed options are:

-h [ --help ]                    display this message
-i [ --input ] arg               vol file (.vol, .longvol .p3d, .pgm3d and if
                                 WITH_ITK is selected: dicom, dcm, mha, mhd).
                                 For longvol, dicom, dcm, mha or mhd formats,
                                 the input values are linearly scaled between
                                 0 and 255.
-o [ --output ] arg              output obj file (.obj)
-m [ --thresholdMin ] arg (=0)   threshold min (excluded) to define binary
shape
-M [ --thresholdMax ] arg (=255) threshold max (included) to define binary
shape
--rescaleInputMin arg (=0)       min value used to rescale the input
                                 intensity (to avoid basic cast into 8  bits
                                 image).
--rescaleInputMax arg (=255)     max value used to rescale the input
                                 intensity (to avoid basic cast into 8 bits
                                 image).

--mode arg (=BDRY)               set mode for display: INNER: inner voxels,
OUTER: outer voxels, BDRY: surfels, CLOSURE:
surfels with linels and pointels.
-n [ --normalization ]           Normalization so that the geometry fits in
[-1/2,1/2]^3

Example:

$ volBoundary2obj -i $DGtal/examples/samples/lobster.vol -m 80 -o out.obj

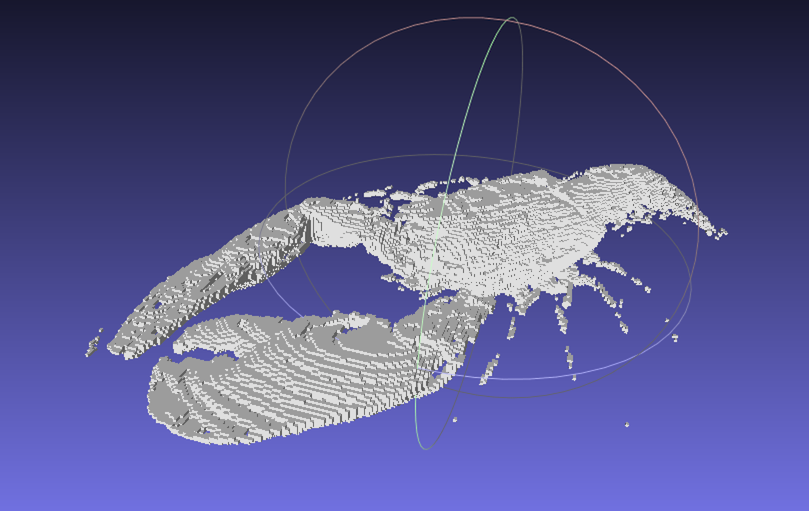

You should obtain such a visualization:

resulting visualisation.

See also

volBoundary2obj.cpp
