volFlip

Flips 2D slice image of an 3D vol image (mirror transformation).

Usage: volFlip –input <volFileName> –imagePlane 0 1 –flipDimension 0 –o <volOutputFileName> (vol, longvol, p3d format)

Allowed options are :

-h [ --help ]                     display this message.
-i [ --input ] arg                Input vol file.
--imagePlane arg                  arg=  {0,1,2} x {0,1,2} defines the axis of
                                  the slice image which will be transformed
                                  (by default arg= 0 1  i.e. the slice image
                                  defined in the X,Y plane (Z=cst)
--flipDimension arg               specify which axis will be used to apply
                                  the flip.
-o [ --output ] arg (=output.vol) Output filename.

Example:

$ volFlip --imagePlane 0 1 --flipDimension 0 -i ${DGtal}/examples/samples/lobster.vol -o flippedXxyLobster.vol

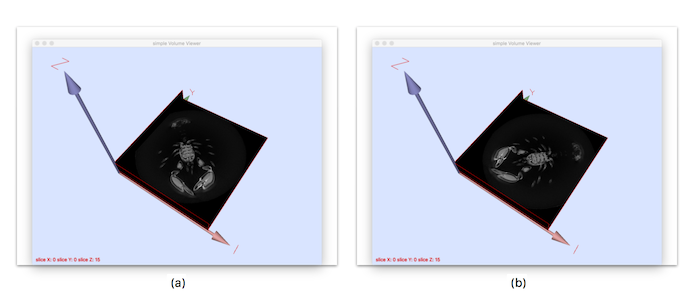

You should obtain such a result:

(a) source image (b) flipped version.

See also

volFlip.cpp
