Displays surfel data from SDP file with color attributes given as scalar interpreted as color.

Usage: 3dDisplaySurfelData [OPTIONS] 1 [fixMaxColorValue] [fixMinColorValue]

Allowed options are :

Positionals:
  1 TEXT:FILE REQUIRED                  input file: sdp (sequence of discrete points with attribute)

Options:
  -h,--help                             Print this help message and exit
  -i,--input TEXT:FILE REQUIRED         input file: sdp (sequence of discrete points with attribute)
  -n,--noWindows                        Don't display Viewer windows.
  -d,--doSnapShotAndExit TEXT           save display snapshot into file.
  --labelIndex UINT                     set the index of the label (by default set to 3)
  --SDPindex UINT ...                   specify the sdp index (by default 0,1,2).
  --fixMaxColorValue FLOAT              fix manually the maximal color value for the scale error display (else the scale is set from the maximal value)
 --fixMinColorValue FLOAT               fix manually the maximal color value for the scale error display (else the scale is set from the minimal value)

Example:

To test this program we have first to generate a file containing a set of surfels with, for instance, their associated curvature values:

$ 3dCurvatureViewer -i $DGtal/examples/samples/cat10.vol -r 3 --exportOnly -d curvatureCat10R3.dat

Then, we can use this tool to display the set of surfel with their associated values:

$ 3dDisplaySurfelData -i curvatureCat10R3.dat

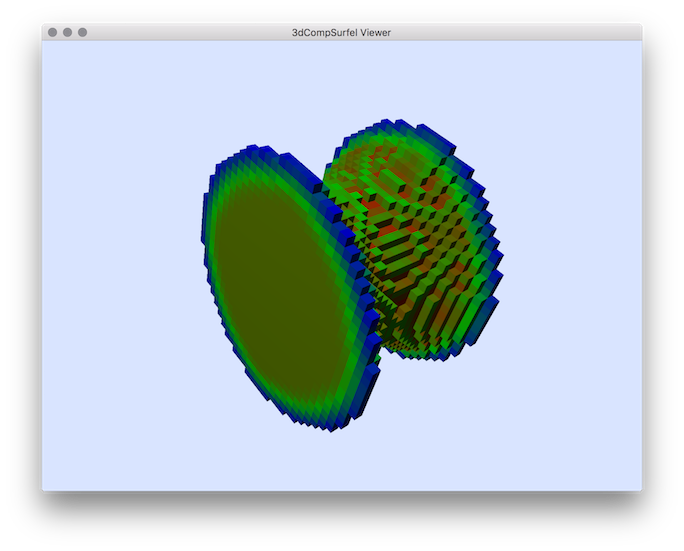

You should obtain such a result:

resulting visualisation of surfel with their associated values.

See also: 3dDisplaySurfelData.cpp, 3DCompSurfelData
