Visualization
- Author(s) of this documentation:\n Bertrand Kerautret
Visualization
- 2dCompImage : compare images and displays differences (squared and absolute differences).
- 3DCompSurfelData : computes generic scalar surfel data comparisons (squared error) ( given from an input data file and from a reference one).

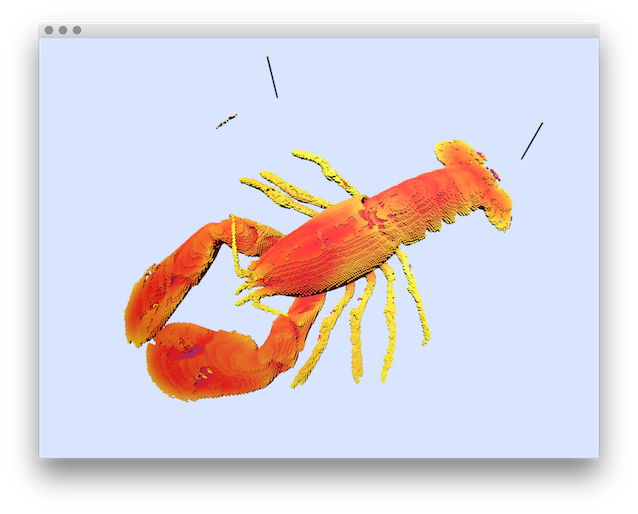

- 3DCurvatureViewer : permits to compute and visualize mean or gaussian curvature of binary shapes.

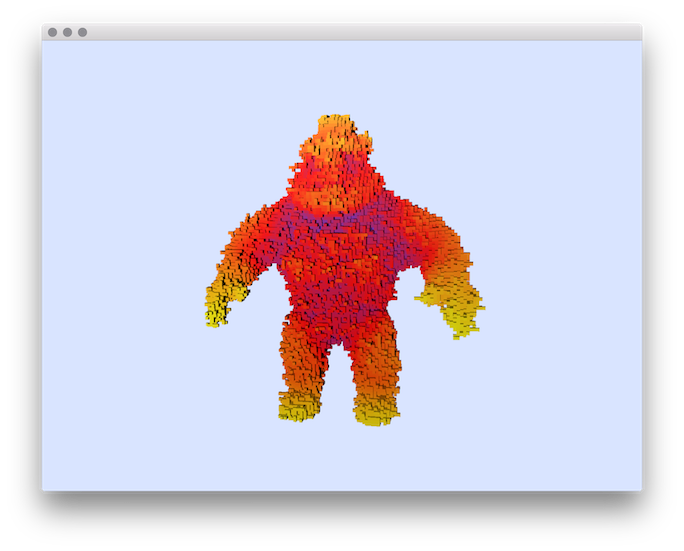

- 3DCurvatureViewerNoise : same as 3DCurvatureViewer, but allows to add some noise to objects.
- 3dCurveViewer : displays a 3D curve given as the input filename (with possibly projections and/or tangent information) by using QGLviewer.
- 3dDisplaySurfelData : displays surfel data from SDP file with color attributes given as scalar interpreted as color.
- 3dHeightMapViewer : displays 2D image as heightmap by using QGLviewer.
- 3dImageViewer : displays volume file as a voxel set by using QGLviewer.
- 3dImplicitSurfaceExtractorBy4DExtension : computes the zero level set of the given polynomial.

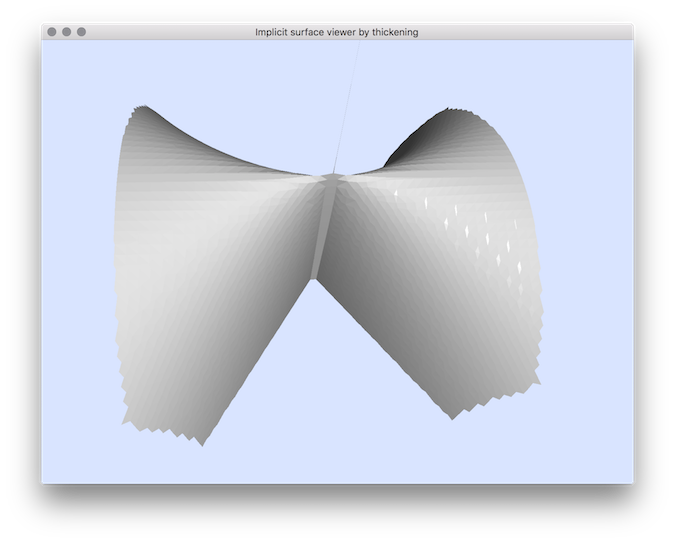

- 3dImplicitSurfaceExtractorByThickening : computes the zero level set of the given polynomial.
- 3DSDPViewer : displays sequence of 3d discrete points by using QGLviewer.
- 3dVolBoundaryViewer : displays the boundary of a volume file by using QGLviewer.
- 3dVolViewer : displays volume file as a voxel set by using QGLviewer.

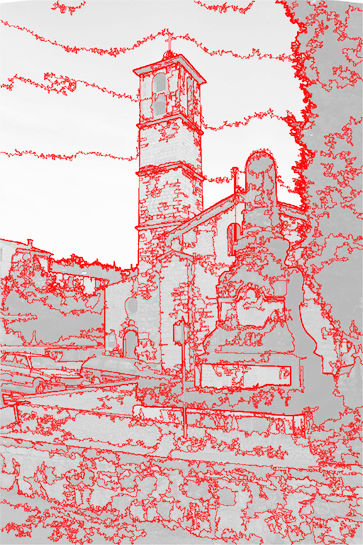

- displayContours : displays discrete contours.
- meshViewer : displays OFF mesh file by using QGLviewer.
- patternTriangulation : draws the Delaunay triangulation of a pattern using DGtal library.
- sliceViewer : displays volume file with slice image by using QT and QGLviewer.
 |  |  |  |
| 3DCurvatureViewer | 3DCurvatureViewerNoise | 3dHeightMapViewer | 3dImageViewer |
 |  |  |  |
| 3dImplicitSurfaceExtractorByThickening | 3dVolViewer | displayContours |
