Cubical Complex
Author(s) of this documentation:
Jacques-Olivier Lachaud
Since
0.9.1

Part of the Topology package.

This part of the manual describes how to represent and process arbitrary cubical complexes.

Note
Collapse operation is a backport from ImaGene. [61]

The following programs are related to this documentation: cubical-complex-collapse.cpp, cubical-complex-illustrations.cpp, testCubicalComplex.cpp, cubicalComplexThinning.cpp.

Introduction to cubical complexes

We define a cubical complex C as a collection of cells living in some Khalimsky space. Two cells of C are incident if and only if they are incident in the Khalimsky space. A cubical complex provides many services related to set of (unsigned) cells living in a Khalimsky space: incidence operations, closure, star, link, cell set operations, cell set relations, collapse operation.

Note
In opposition to the usual definition of simplical complex, we do not require that all faces of a cell of C belong also to C.
A digital surface is not a cubical complex, because it does not contain explicitely cells of dimension lower than n-1 and because it requires some sort of orientation. However, it is easy to build an ExplicitDigitalSurface or a LightExplicitDigitalSurface from a CubicalComplex that stores a set of d-1-cells. You just need to create a functor Surfel -> bool from the complex.

To create a cubical complex, we need to specify in which Khalimsky space it lives and also, optionally, the type of container used for storing cells. By default it is std::map but boost::unordered_map or std::unordered_map is also possible.

using namespace DGtal;
typedef std::map<Cell, CubicalCellData> Map; // each cell must store at least a CubicalCellData
typedef CubicalComplex< KSpace, Map > CC; // the type of cubical complex
KSpace K; // The cellular grid space
K.init( Point( 0,0 ), Point( 100,100 ), true ); // Limits of the grid space
CC complex( K ); // The complex
Aim: This class represents an arbitrary cubical complex living in some Khalimsky space....
Aim: This class is a model of CCellularGridSpaceND. It represents the cubical grid as a cell complex,...
DGtal is the top-level namespace which contains all DGtal functions and types.
MyPointD Point
Definition: testClone2.cpp:383
KSpace K
std::unordered_map< Cell, CubicalCellData > Map
CubicalComplex< KSpace, Map > CC

Cells may be inserted through methods CubicalComplex::insertCell and CubicalComplex::insertCells. Cells are easily created with a model of CCellularGridSpaceND, for instance by specifying Khalimsky coordinates (see Cellular grid space and topology, unoriented and oriented cells, incidence). The small piece of code below creates a ring around a pixel.

typedef KSpace::Point Point; // the type of each digital point.
complex.insertCell( 0, K.uCell( Point( 0, 0 ) ) ); // it is optional (but slightly faster)
complex.insertCell( 1, K.uCell( Point( 1, 0 ) ) ); // to specify the dimension of the cell
complex.insertCell( 0, K.uCell( Point( 2, 0 ) ) ); // at insertion.
complex.insertCell( 1, K.uCell( Point( 2, 1 ) ) );
complex.insertCell( 0, K.uCell( Point( 2, 2 ) ) );
complex.insertCell( 1, K.uCell( Point( 1, 2 ) ) );
complex.insertCell( 0, K.uCell( Point( 0, 2 ) ) );
complex.insertCell( 1, K.uCell( Point( 0, 1 ) ) );
trace.info() << "Euler number is " << complex.euler() << std::endl; // Should be 0
std::ostream & info()
Trace trace
Definition: Common.h:154

Method CubicalComplex::insertCells accepts any range of iterators on cells as input, hence you may for instance directly create a cubical complex from a digital surface (see Digital surfaces).

You have also methods to remove some cells (CubicalComplex::eraseCell, CubicalComplex::eraseCells) and methods to check if a cell belongs to the complex (CubicalComplex::belongs).

Note
You may use std::unordered_map or boost::unordered_map instead of std::map. It is sometimes slightly faster. In this case you need to define a hash function for cells. Either you provide one, or you just include the file KhalimskyCellHashFunctions.h with:
#include "DGtal/topology/KhalimskyCellHashFunctions.h"

Last, there is a data associated with each cell of a complex. The data type must either be CubicalCellData or a type that derives from CubicalCellData. This data is used by the functions::collapse operation, a function that is used to make a homotopic thinning of the cubical complex. It may also be used by the user for other purposes, like storing flags, coordinates or anything else associated to a cell. Look at the documentation of CubicalCellData to see the default stored flags and data.

Displaying a 2D cubical complex

2D cubical complex are displayable on a Board (see Board2D: a stream mechanism for displaying 2D digital objects). You just have to output the complex with the stream operator of a board. You may adjust the default style before. The following snippet creates and outputs a 2D complex.

using namespace DGtal::Z2i;
K.init( Point( 0,0 ), Point( 5,3 ), true );
trace.beginBlock( "Creating Cubical Complex" );
CC X( K );
Domain domain( Point( 0,0 ), Point( 5,3 ) );
X.insertCell( K.uSpel( Point(1,1) ) );
X.insertCell( K.uSpel( Point(2,1) ) );
X.insertCell( K.uSpel( Point(3,1) ) );
X.insertCell( K.uSpel( Point(2,2) ) );
X.insertCell( K.uSpel( Point(3,2) ) );
X.insertCell( K.uSpel( Point(4,2) ) );
X.close();
trace.beginBlock( "Displays Cubical Complex" );
Board2D board;
board << domain;
board << CustomStyle( X.className(),
new CustomColors( Color(80,80,100), Color(180,180,200) ) )
<< X;
board.saveTikZ( "cubical-complex-illustrations-X.tikz" );
Aim: This class specializes a 'Board' class so as to display DGtal objects more naturally (with <<)....
Definition: Board2D.h:71
Structure representing an RGB triple with alpha component.
Definition: Color.h:68
void beginBlock(const std::string &keyword="")
double endBlock()
void saveTikZ(const char *filename, PageSize size=Board::BoundingBox, double margin=10.0) const
Definition: Board.cpp:1219
Z2i this namespace gathers the standard of types for 2D imagery.
Custom style class redefining the pen color and the fill color. You may use Board2D::Color::None for ...
Definition: Board2D.h:279
Domain domain
HyperRectDomain< Space > Domain
Displaying a 2D cubical complex on a Board.

Incidence within a cubical complex

Two cells of a cubical complex are incident if and only if they are incident in the Khalimsky space. From this relation, one can define faces, co-faces, as well as the boundary and co-boundary of a cell.

You have methods to get the faces, the co-faces, the direct faces or co-faces of a cell c, which are outputed with an output iterator:

  • CubicalComplex::faces: outputs the faces of c, i.e. all cells of lesser dimension than c and incident to c. You may specify that the complex is closed (if it is, at least locally) to speed-up this function.
  • CubicalComplex::directFaces: outputs the direct faces of c, i.e. all cells of dimension one less than c and incident to c. You may specify that the complex is closed (if it is, at least locally) to speed-up this function.
  • CubicalComplex::coFaces: outputs the co-faces of c, i.e. all cells of greater dimension than c and incident to c. You may specify that the complex is open (if it is, at least locally) to speed-up this function.
  • CubicalComplex::directCoFaces: outputs the direct co-faces of c, i.e. all cells of dimension one more than c and incident to c. You may specify that the complex is open (if it is, at least locally) to speed-up this function.

There are also versions of these methods that return the iterators on these cells, if you need to access them directly in the complex afterwards.

If you wish to get a vector of cells that contains all the proper faces of some cell, then CubicalComplex::cellBoundary does the job. It is in general slightly faster than using CubicalComplex::faces.

If you wish to get a vector of cells that contains all the proper co-faces of some cell, then CubicalComplex::cellCoBoundary does the job. Again it is in general slightly faster than using CubicalComplex::coFaces.

Closure, star and link of cells of a complex

You have three methods to compute these "subcomplexes" of a complex X. In each case, you must give a subcomplex S of X which defines the cells for which you wish to compute the closure, star or link.

Cubical complex X in light grey and subcomplex S in dark grey.
Closure of S in X, displayed in red.
Star of S in X, displayed in red.
Link of S in X, displayed in green.

Interior, boundary of a complex

You have three methods for computing the interior or the boundary of a complex. Note that the boundary and the interior of a complex have an empty intersection:

Interior of X, displayed in cyan.
Boundary of X, displayed in magenta.

Set operations on complexes

A cubical complex can be seen as a generic container (it is a model of boost::Container). Remember though that it is not a model of boost::DefaultConstructible, because it must know a cellular grid space to be valid. You could thus use operations defined in DGtal::functions::setops (see Set operations on arbitrary containers) to perform set operations and relations on complexes. However, to use the specificity of the templated parameter CellContainer of CubicalComplex, it is better to use operations and relations specifically defined for CubicalComplex, for instance as follows:

CC X( K ); // creates the cubical complex
CC Xc = ~X; // closing of X
CC Xco = *Xc; // opening of Xc (interior of X).
CC Xbd = Xc - Xco; // boundary of X.
CC Xbd2= X.boundary();// same result for pure complex.
CubicalComplex boundary(bool hintClosed=false) const

You have the following operations:

  • operator| : union of two complexes.
  • operator|= : assignment union with another complex.
  • operator& : intersection of two complexes.
  • operator&= : assignment intersection with another complex.
  • operator- : set difference of two complexes.
  • operator-= : assignment set difference with another complex.
  • operator^ : symmetric set difference of two complexes.
  • operator^= : assignment symmetric set difference with another complex.
  • operator~ : closing of a complex (smallest closed complex containg input complex).
  • operator* : opening of a complex (greatest open complex contained in input complex).

And the following relations:

  • operator<= : inclusion of two complexes (subset).
  • operator>= : inclusion of two complexes (supset).
  • operator== : equality of two complexes (both subset and supset).
  • operator!= : non-equality of two complexes (equal is false).

All these operations are at most linear in the sum of the number of cells of input complexes, but they are generally exponential in the dimension of complexes.

Topological operations: closing, opening, collapsing a complex

You may close a complex (CubicalComplex::close), i.e. adding cells such that the faces of every cell belongs to the complex. The complex is then said to be closed. The updated complex corresponds to the smallest closed complex containing it.

You may open a complex (CubicalComplex::open), i.e. removing cells such that the co-faces of every cell belongs to the complex. The complex is then said to be open. The updated complex corresponds to the greatest open complex contained in it.

A more difficult topological operation is the collapse (functions::collapse). A collapse transforms a complex by removing cells, but at the end the complex has the same homotopy type as the initial complex. The topology is preserved since only free pairs are removed. The following snippet shows how to collapse complex X, while keeping two cells fixed.

board << domain;
board << CustomStyle( X.className(),
new CustomColors( Color(80,80,100), Color(180,180,200) ) )
<< X;
Cell p1 = K.uCell( Point(2,2) );
Cell p2 = K.uCell( Point(10,6) );
X[ p1 ] = CC::FIXED;
X[ p2 ] = CC::FIXED;
functions::collapse( X, X.begin(), X.end(), P, true, true, true );
board << CustomStyle( X.className(),
new CustomColors( Color(255,120,20), Color(255,150,50) ) )
<< X
new CustomColors( Color::Blue, Color(120,120,255) ) )
<< p1 << p2;
board.saveTikZ( "cubical-complex-illustrations-collapse.tikz" );
board.clear();
uint64_t collapse(CubicalComplex< TKSpace, TCellContainer > &K, CellConstIterator S_itB, CellConstIterator S_itE, const CellMapIteratorPriority &priority, bool hintIsSClosed=false, bool hintIsKClosed=false, bool verbose=false)
std::string className() const
Return the style name used for drawing this object.
KSpace::Cell Cell

As you can see, when collapsing a complex X, you precise:

  • The subcomplex of X that can be collapsed (should be closed, otherwise it is closed).
  • A priority object that tells in which order cell are collapsed. If you use CubicalComplex::DefaultCellMapIteratorPriority, then the order follows the values stored in the data associated with each cell. You may use CubicalComplex::operator[] to change this value for each cell. The higher the value the sooner the cell is collapsed.
  • Various hints to speed up the process.

Example topology/cubical-complex-collapse.cpp shows that it works also in 3D (in fact, it is nD).

Homotopic collapse of X, displayed in orange, with fixed points marked in blue.

Thinning in cubical complexes

Thinning of digital objects in 2D and 3D with the guarantee that a final skeleton is thin can be achieved directly only in \(\mathbb{Z}^2\) for so-called well-composed images [78]. Nevertheless, the problem can be solved for 3D objects represented by cubical complexes [23].

In [23] Chaussard and Couprie proposed a parallel directional thinning schemes in cubical complexes which allow to obtain a thin result. The implementation in DGtal works for both 2D and 3D cubical complexes.

The first scheme, so-called ParDirCollapse—parallel directional collapse—based on the idea such that free pairs of faces are collapsed with respect to a fixed order of directions and order of face dimensions. In other words, in each iteration we first collapse free pairs of a given direction starting with pairs of the highest dimension. When there is no more free pairs to remove for a given direction then another direction is considered unless the specified number of iterations is not reached . Note in the case of ParDirCollapse the thinness of the result depends on the number of iterations.

The steps below present how to use ParDirCollapse in DGtal:

a) add those includes:

#include "DGtal/topology/ParDirCollapse.h"

b) create an instance of the class ParDirCollapse and initialize it with an instance of the Khalimsky space:

ParDirCollapse < CC > thinning ( K );

c) attach a cubical complex \(X\) to be thinned:

thinning.attach ( &complex );

d) run the algorithm (here two iterations):

thinning.eval ( 2 );

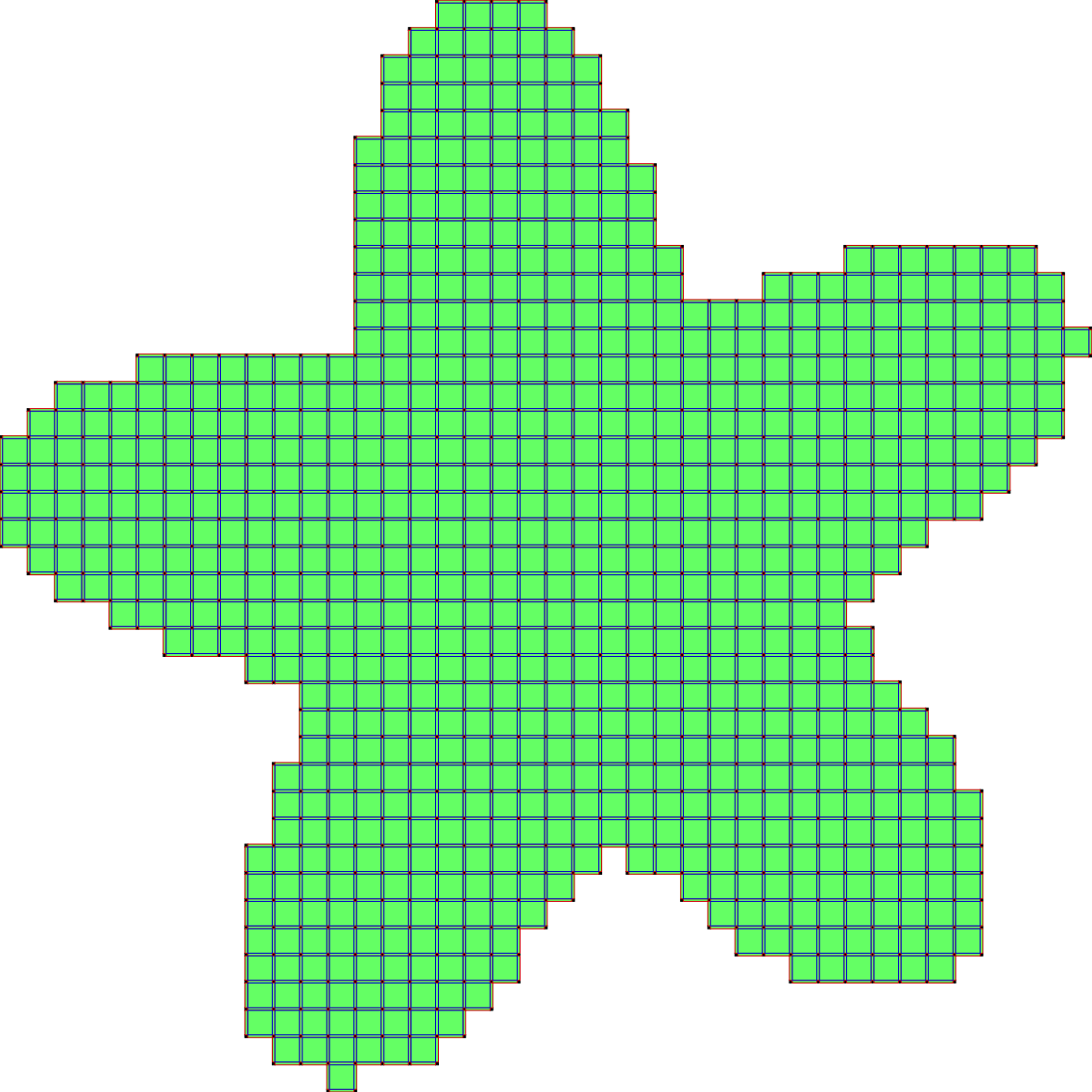

The starting complex X before thinning.

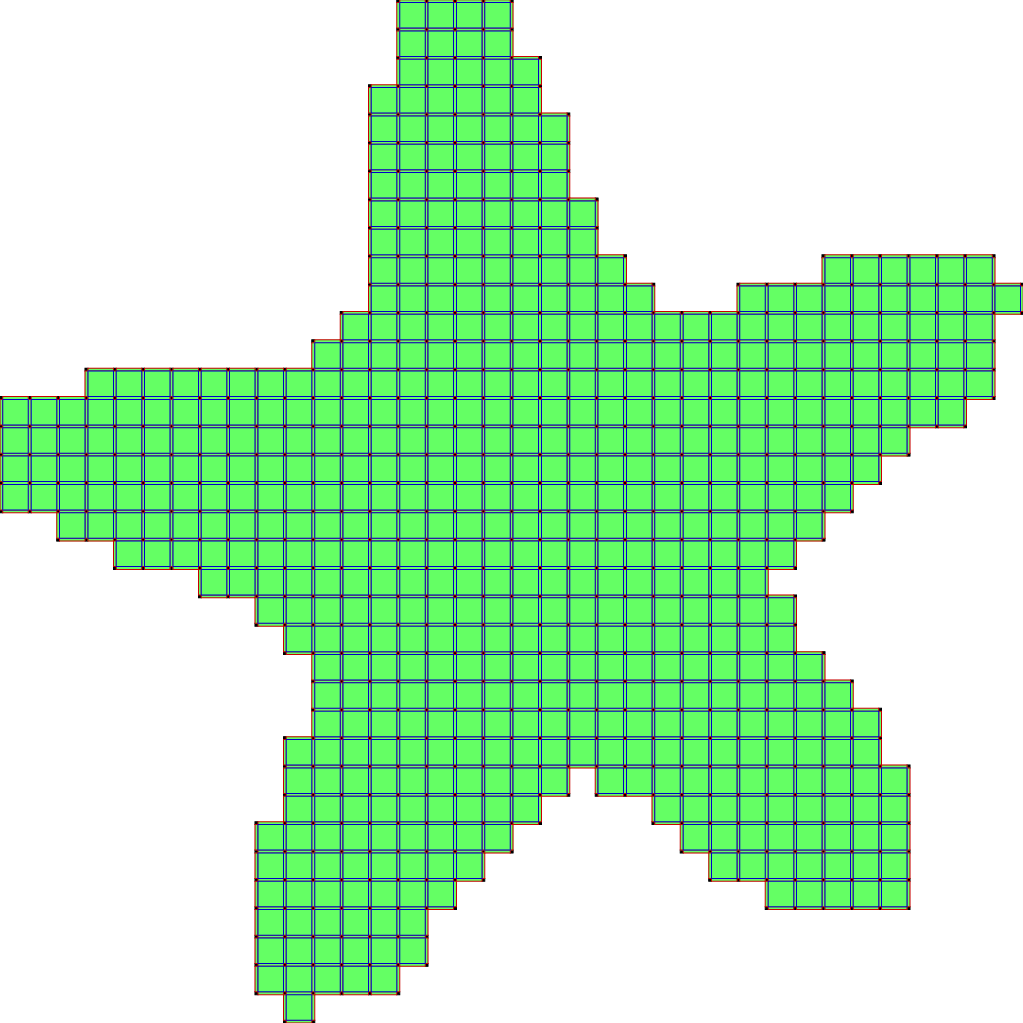

The starting complex X after two iterations of ParDirCollapse.

The second scheme, so-called SurfaceCollapse is similar to ParDirCollapse. The only difference is that after each iteration of ParDirCollapse, faces of dimension \(dim(X) - 1\) which are not included in faces of higher dimension are marked as non-collapsible. The final output is guaranteed to be thin i.e. there is no faces of \(dim(X)\).

To run SurfaceCollapse we apply steps a–c for ParDirCollapse and then we apply the step below:

d) run the algorithm:

thinning.collapseSurface ();

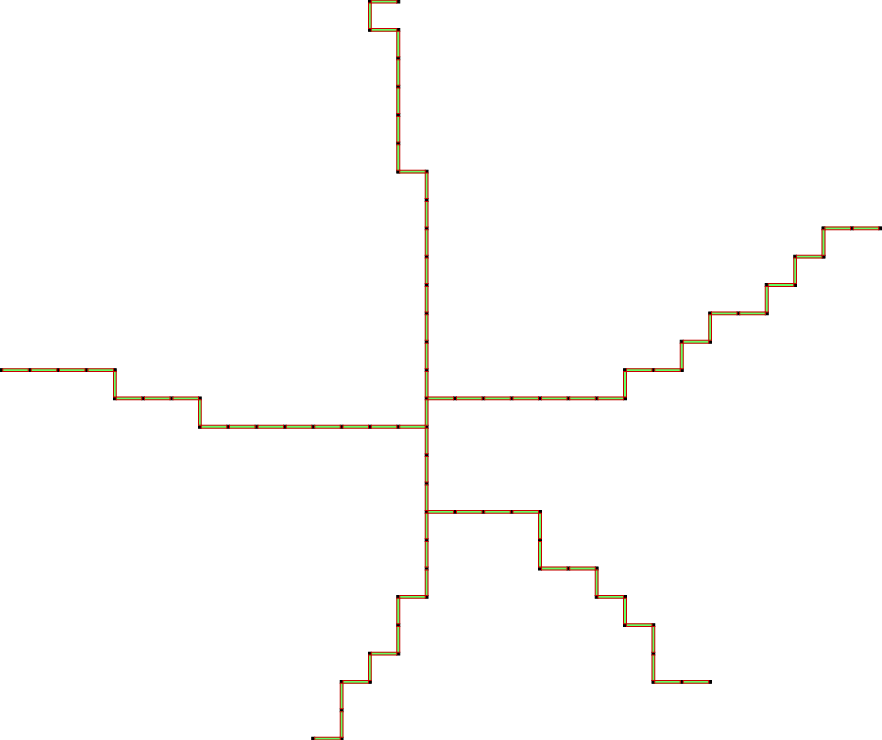

The starting complex X after SurfaceCollapse.

The last scheme, so-called IsthmusCollapse is similar to SurfaceCollapse. The only difference is that after each iteration of ParDirCollapse, we mark as non-collapsible those faces which are of dimension dim \((X) - 1\) and not included in faces of higher dimension. Moreover, all sub-faces of dimension \(dim(X) - 2\) of those faces have to be not free – are included in other faces of dimension \(dim(X) - 1\). The final output is guarantee to be thin i.e. there is no faces of \(dim(X)\).

To run SurfaceCollapse we apply steps a–c for ParDirCollapse and then we apply the step below:

d) run the algorithm:

thinning.collapseIsthmus ();

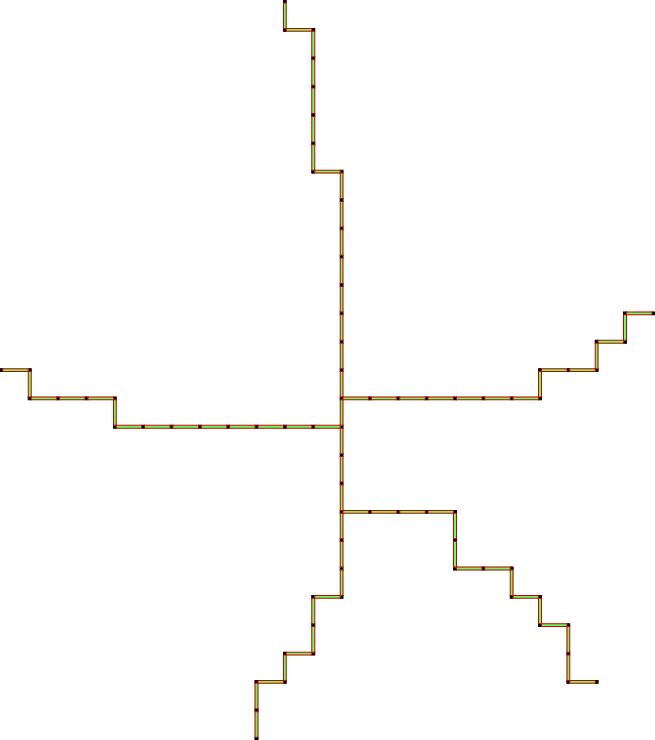

The starting complex X after IsthmusCollapse.

For more details see the example topology/cubicalComplexThinning.cpp.
