geometry/volumes/standardDigitalPolyhedronBuilder3D.cpp

This example shows how to use the fully convex envelope to build a digital polyhedron from an arbitrary mesh. All faces have also the property that their points lies in the naive/standard plane defined by its vertices. It uses DigitalConvexity::relativeEnvelope for computations.

See also

Digital polyhedra

For instance, you may call it on object "lion-tri.obj" as

standardDigitalPolyhedronBuilder3D ../examples/samples/lion-tri.obj 0.5 31

The last parameter specifies whether you want to see vertices (1) in black, edges common to both faces (2) in magenta, part of edges that are only on one face (4) and (8) (red on one side, blue on the other) and faces (16) in grey, or any combination.

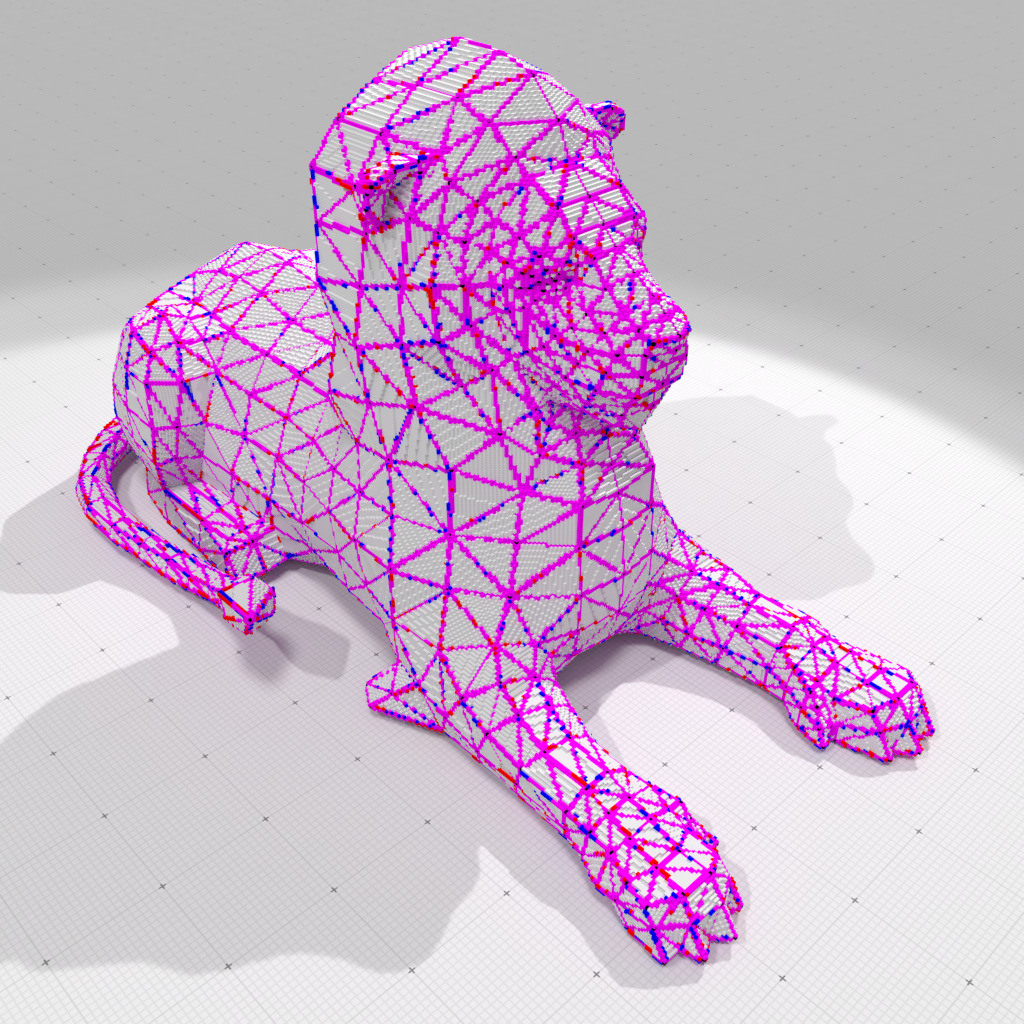

(Symmetric) standard Digital polyhedral model of 'lion-tri.obj' at gridstep 0.5

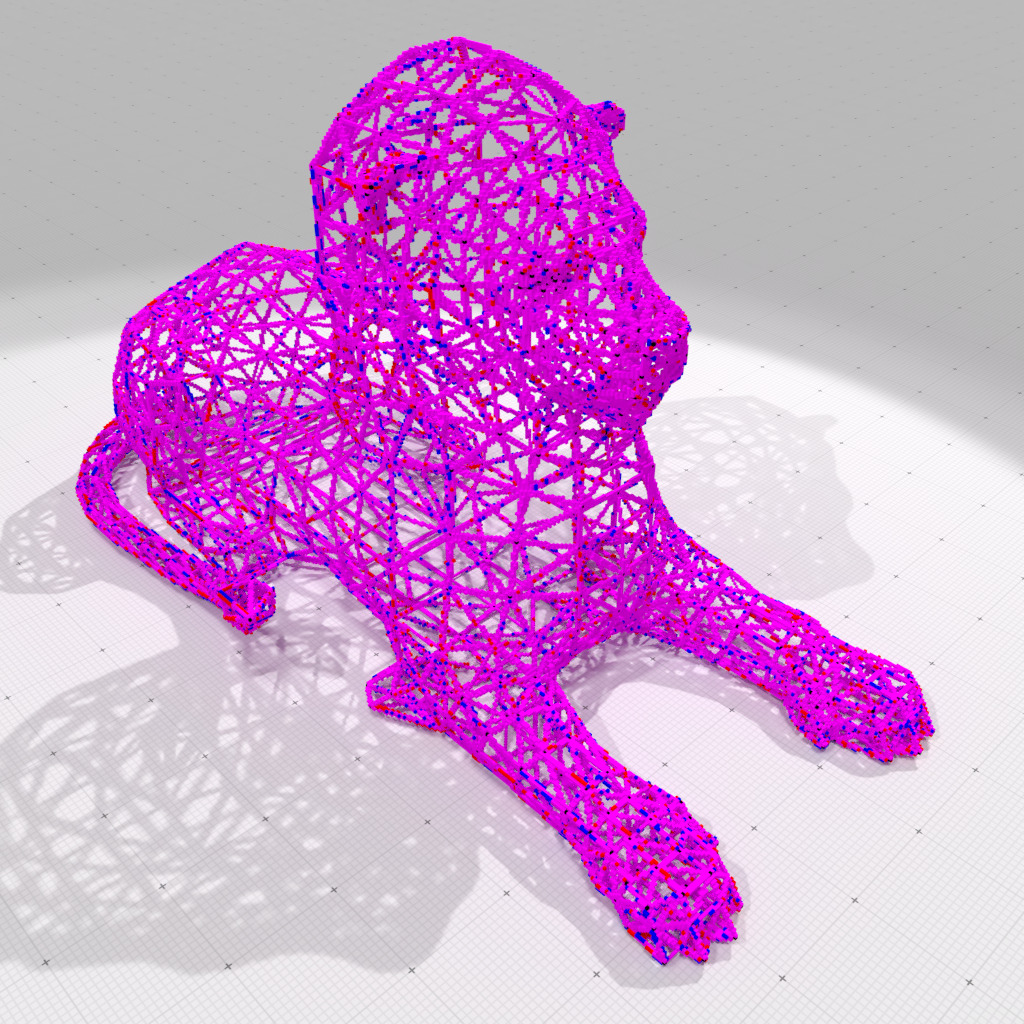

(Symmetric) standard Digital polyhedral model of 'lion-tri.obj' at gridstep 0.5 (vertices and edges only)


namespace DGtal {
} // namespace DGtal {

#include <iostream>
#include <queue>
#include "DGtal/base/Common.h"
#include "DGtal/helpers/StdDefs.h"
#include "DGtal/io/viewers/PolyscopeViewer.h"
#include "DGtal/shapes/Shapes.h"
#include "DGtal/shapes/SurfaceMesh.h"
#include "DGtal/io/readers/SurfaceMeshReader.h"
#include "DGtal/geometry/volumes/DigitalConvexity.h"
#include "ConfigExamples.h"


using namespace std;
using namespace DGtal;
typedef Z3i::Space          Space;
typedef Z3i::Integer        Integer;
typedef Z3i::KSpace         KSpace;
typedef Z3i::Domain         Domain;
typedef Z3i::SCell          SCell;
typedef Space::Point        Point;
typedef Space::RealPoint    RealPoint;
typedef Space::RealVector   RealVector;
typedef Space::Vector       Vector;
typedef std::vector<Point>  PointRange;

// Convenient class to represent different types of arithmetic planes as a predicate.
template < bool Naive, bool Symmetric >
struct MedianPlane {
  Vector  N;
  Integer mu;
  Integer omega;
  MedianPlane() = default;
  MedianPlane( const MedianPlane& other ) = default;
  MedianPlane( MedianPlane&& other ) = default;
  MedianPlane& operator=( const MedianPlane& other ) = default;
  MedianPlane& operator=( MedianPlane&& other ) = default;
  MedianPlane( Point p, Point q, Point r )
    : N ( ( q - p ).crossProduct( r - p ) )
  {
    mu = N.dot( p );
    omega = Naive ? N.norm( N.L_infty ) : N.norm( N.L_1 );
    if ( Symmetric && ( ( omega & 1 ) == 0 ) ) omega += 1;
    mu -= omega / 2;
  }
  bool operator()( const Point& p ) const
  {
    auto r = N.dot( p );
    return ( mu <= r ) && ( r < mu+omega );
  }
};

// Choose your plane !
// typedef MedianPlane< true,  false > Plane; //< Naive, thinnest possible
// typedef MedianPlane< true,  true  > Plane; //< Naive, Symmetric
// typedef MedianPlane< false, false > Plane; //< Standard
typedef MedianPlane< false, true  > Plane; //< Standard, Symmetric, thickest here

int main( int argc, char** argv )
{
  trace.info() << "Usage: " << argv[ 0 ] << " <input.obj> <h> <view>" << std::endl;
  trace.info() << "\tComputes a digital polyhedron from an OBJ file" << std::endl;
  trace.info() << "\t- input.obj: choose your favorite mesh" << std::endl;
  trace.info() << "\t- h [==1]: the digitization gridstep" << std::endl;
  trace.info() << "\t- view [==31]: display vertices(1), common edges(2), positive side f edges(4), negative side f edges (8), faces(16)" << std::endl;
  string filename = examplesPath + "samples/lion.obj";
  std::string  fn = argc > 1 ? argv[ 1 ]         : filename; //< vol filename
  double        h = argc > 2 ? atof( argv[ 2 ] ) : 1.0;
  int        view = argc > 3 ? atoi( argv[ 3 ] ) : 31;
  // Read OBJ file
  std::ifstream input( fn.c_str() );
  DGtal::SurfaceMesh< RealPoint, RealVector > surfmesh;
  bool ok = SurfaceMeshReader< RealPoint, RealVector >::readOBJ( input, surfmesh );
  if ( ! ok )
    {
      trace.error() << "Unable to read obj file : " << fn << std::endl;
      return 1;
    }

  typedef PolyscopeViewer<Space,KSpace> MViewer;
  MViewer viewer;

  Point lo(-500,-500,-500);
  Point up(500,500,500);
  DigitalConvexity< KSpace > dconv( lo, up );
  typedef DigitalConvexity< KSpace >::EnvelopeAlgorithm Algorithm;

  auto vertices = std::vector<Point>( surfmesh.nbVertices() );
  for ( auto v : surfmesh )
    {
      RealPoint p = (1.0 / h) * surfmesh.position( v );
      Point q ( (Integer) round( p[ 0 ] ),
                (Integer) round( p[ 1 ] ),
                (Integer) round( p[ 2 ] ) );
      vertices[ v ] = q;
    }
  std::set< Point > faces_set, pos_edges_set, neg_edges_set;
  auto faceVertices = surfmesh.allIncidentVertices();

  trace.beginBlock( "Checking face planarity" );
  std::vector< Plane > face_planes;
  face_planes.resize( surfmesh.nbFaces() );
  bool planarity = true;
  for ( int f = 0; f < surfmesh.nbFaces() && planarity; ++f )
    {
      PointRange X;
      for ( auto v : faceVertices[ f ] )
        X.push_back( vertices[ v ] );
      face_planes[ f ] = Plane( X[ 0 ], X[ 1 ], X[ 2 ] );
      for ( int v = 3; v < X.size(); v++ )
        if ( ! face_planes[ f ]( X[ v ] ) )
          {
            trace.error() << "Face " << f << " is not planar." << std::endl;
            planarity = false; break;
          }
    }
  trace.endBlock();
  if ( ! planarity ) return 1;
  trace.beginBlock( "Computing polyhedron" );
  for ( int f = 0; f < surfmesh.nbFaces(); ++f )
    {
      PointRange X;
      for ( auto v : faceVertices[ f ] )
        X.push_back( vertices[ v ] );
      auto F = dconv.relativeEnvelope( X, face_planes[ f ], Algorithm::DIRECT );
      faces_set.insert( F.cbegin(), F.cend() );
      for ( int i = 0; i < X.size(); i++ )
        {
          PointRange Y { X[ i ], X[ (i+1)%X.size() ] };
          if ( Y[ 1 ] < Y[ 0 ] ) std::swap( Y[ 0 ], Y[ 1 ] );
          int idx1 = faceVertices[ f ][ i ];
          int idx2 = faceVertices[ f ][ (i+1)%X.size() ];
          // Variant (1): edges of both sides have many points in common
          // auto A = dconv.relativeEnvelope( Y, face_planes[ f ], Algorithm::DIRECT );
          // Variant (2): edges of both sides have much less points in common
          auto A = dconv.relativeEnvelope( Y, F, Algorithm::DIRECT );
          bool pos = idx1 < idx2;
          (pos ? pos_edges_set : neg_edges_set).insert( A.cbegin(), A.cend() );
        }
    }
  trace.endBlock();
  std::vector< Point > face_points, common_edge_points, arc_points, final_arc_points ;
  std::vector< Point > pos_edge_points, neg_edge_points, both_edge_points;
  std::vector< Point > vertex_points = vertices;
  std::sort( vertex_points.begin(), vertex_points.end() );
  std::set_symmetric_difference( pos_edges_set.cbegin(), pos_edges_set.cend(),
                                 neg_edges_set.cbegin(), neg_edges_set.cend(),
                                 std::back_inserter( arc_points ) );
  std::set_intersection( pos_edges_set.cbegin(), pos_edges_set.cend(),
                         neg_edges_set.cbegin(), neg_edges_set.cend(),
                         std::back_inserter( common_edge_points ) );
  std::set_union( pos_edges_set.cbegin(), pos_edges_set.cend(),
                  neg_edges_set.cbegin(), neg_edges_set.cend(),
                  std::back_inserter( both_edge_points ) );
  std::set_difference( faces_set.cbegin(), faces_set.cend(),
                       both_edge_points.cbegin(), both_edge_points.cend(),
                       std::back_inserter( face_points ) );
  std::set_difference( pos_edges_set.cbegin(), pos_edges_set.cend(),
                       common_edge_points.cbegin(), common_edge_points.cend(),
                       std::back_inserter( pos_edge_points ) );
  std::set_difference( neg_edges_set.cbegin(), neg_edges_set.cend(),
                       common_edge_points.cbegin(), common_edge_points.cend(),
                       std::back_inserter( neg_edge_points ) );
  std::set_difference( common_edge_points.cbegin(), common_edge_points.cend(),
                       vertex_points.cbegin(), vertex_points.cend(),
                       std::back_inserter( final_arc_points ) );
  auto total = vertex_points.size() + pos_edge_points.size()
    + neg_edge_points.size()
    + final_arc_points.size() + face_points.size();
  trace.info() << "#vertex   points=" << vertex_points.size() << std::endl;
  trace.info() << "#pos edge points=" << pos_edge_points.size() << std::endl;
  trace.info() << "#neg edge points=" << neg_edge_points.size() << std::endl;
  trace.info() << "#arc      points=" << final_arc_points.size() << std::endl;
  trace.info() << "#face     points=" << face_points.size() << std::endl;
  trace.info() << "#total    points=" << total << std::endl;

  // display everything
  Color colors[] =
    { Color::Black, Color::Blue, Color::Red,
      Color::Magenta, Color( 200, 200, 200 ) };
  if ( view & 0x1 )
    {
      viewer.drawColor( colors[ 0 ] );
      viewer.drawColor( colors[ 0 ] );
      for ( auto p : vertices ) viewer << p;
    }
  if ( view & 0x2 )
    {
      viewer.drawColor( colors[ 3 ] );
      viewer.drawColor( colors[ 3 ] );
      for ( auto p : final_arc_points ) viewer << p;
    }
  if ( view & 0x4 )
    {
      viewer.drawColor( colors[ 1 ] );
      viewer.drawColor( colors[ 1 ] );
      for ( auto p : pos_edge_points ) viewer << p;
    }
  if ( view & 0x8 )
    {
      viewer.drawColor( colors[ 2 ] );
      viewer.drawColor( colors[ 2 ] );
      for ( auto p : neg_edge_points ) viewer << p;
    }
  if ( view & 0x10 )
    {
      viewer.drawColor( colors[ 4 ] );
      viewer.drawColor( colors[ 4 ] );
      for ( auto p : face_points ) viewer << p;
    }

  viewer.show();
  return 0;

}
//                                                                           //
