images/extract2DImagesFrom3D.cpp

Example of 2D images extraction from 3D images.

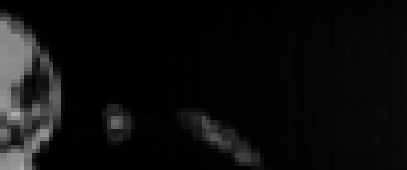

Example of one of the resulting

2D images of the sample/lobster.vol file (with increased size)."


#include <iostream>
#include <sstream>
#include "DGtal/kernel/BasicPointFunctors.h"
#include "DGtal/base/Common.h"
#include "DGtal/helpers/StdDefs.h"
#include "DGtal/io/readers/VolReader.h"
#include "DGtal/io/writers/PGMWriter.h"
#include "DGtal/images/ImageSelector.h"
#include "DGtal/images/ConstImageAdapter.h"
#include "ConfigExamples.h"

using namespace std;
using namespace DGtal;


const int IMAGE_PATCH_WIDTH = 70;

int main( int /*argc*/, char** /*argv*/ )
{
   typedef ImageSelector < Z3i::Domain, unsigned char>::Type Image3D;
   typedef DGtal::ConstImageAdapter<Image3D, Z2i::Domain, DGtal::functors::Point2DEmbedderIn3D<DGtal::Z3i::Domain>,
                                    Image3D::Value,  DGtal::functors::Identity >  ImageAdapterExtractor;

   DGtal::Z3i::Point origin(150, 150, 10);
   DGtal::Z3i::Point ptUpper1(220, 220, 10);
   DGtal::Z3i::Point ptUpper2(150, 150, 50);
   DGtal::Z2i::Domain domainImage2D (DGtal::Z2i::Point(0,0),
                                     DGtal::Z2i::Point(static_cast<int>((ptUpper1-origin).norm()),
                                                       static_cast<int>((ptUpper2-origin).norm())));
   DGtal::Z3i::Point ptCenter(175, 175, 20);
   DGtal::Z2i::Domain domainImage2D2 (DGtal::Z2i::Point(0,0),
                                      DGtal::Z2i::Point(IMAGE_PATCH_WIDTH, IMAGE_PATCH_WIDTH));


   // Importing a 3D image
   std::string filename = examplesPath + "samples/lobster.vol";
   Image3D image = VolReader<Image3D>::importVol( filename );
   DGtal::Z3i::Domain domainImage3D = image.domain();
   DGtal::functors::Identity idV;

   trace.beginBlock ( "Example extract2DImagesFrom3D" );

   // Extracting 2D images ... and export them in the pgm format.
   for (unsigned int i=0; i<30; i+=10){
     std::stringstream name;
     name << "lobsterExtracted_"  << i << ".pgm";
     std::stringstream name2;
     name2 << "lobsterExtracted_"  << i << "V2.pgm";

     DGtal::functors::Point2DEmbedderIn3D<DGtal::Z3i::Domain >  embedder(domainImage3D, origin+DGtal::Z3i::Point(i,i,0),
                                                               ptUpper1+DGtal::Z3i::Point(i,i,0),
                                                               ptUpper2+DGtal::Z3i::Point(i,i,0));

     ImageAdapterExtractor extractedImage(image, domainImage2D, embedder, idV);

     DGtal::functors::Point2DEmbedderIn3D<DGtal::Z3i::Domain >  embedder2(domainImage3D, ptCenter+DGtal::Z3i::Point(i,i,0),
                                                                DGtal::Z3i::RealPoint(1,-1,0),
                                                                IMAGE_PATCH_WIDTH);
     ImageAdapterExtractor extractedImage2(image, domainImage2D2, embedder2, idV);

     PGMWriter< ImageAdapterExtractor>::exportPGM(name.str(), extractedImage);
     PGMWriter< ImageAdapterExtractor>::exportPGM(name2.str(), extractedImage2);
   }

   // trace.endBlock();
   return 0;
}
//                                                                           //
