io/viewers/viewer3D-3-objects.cpp

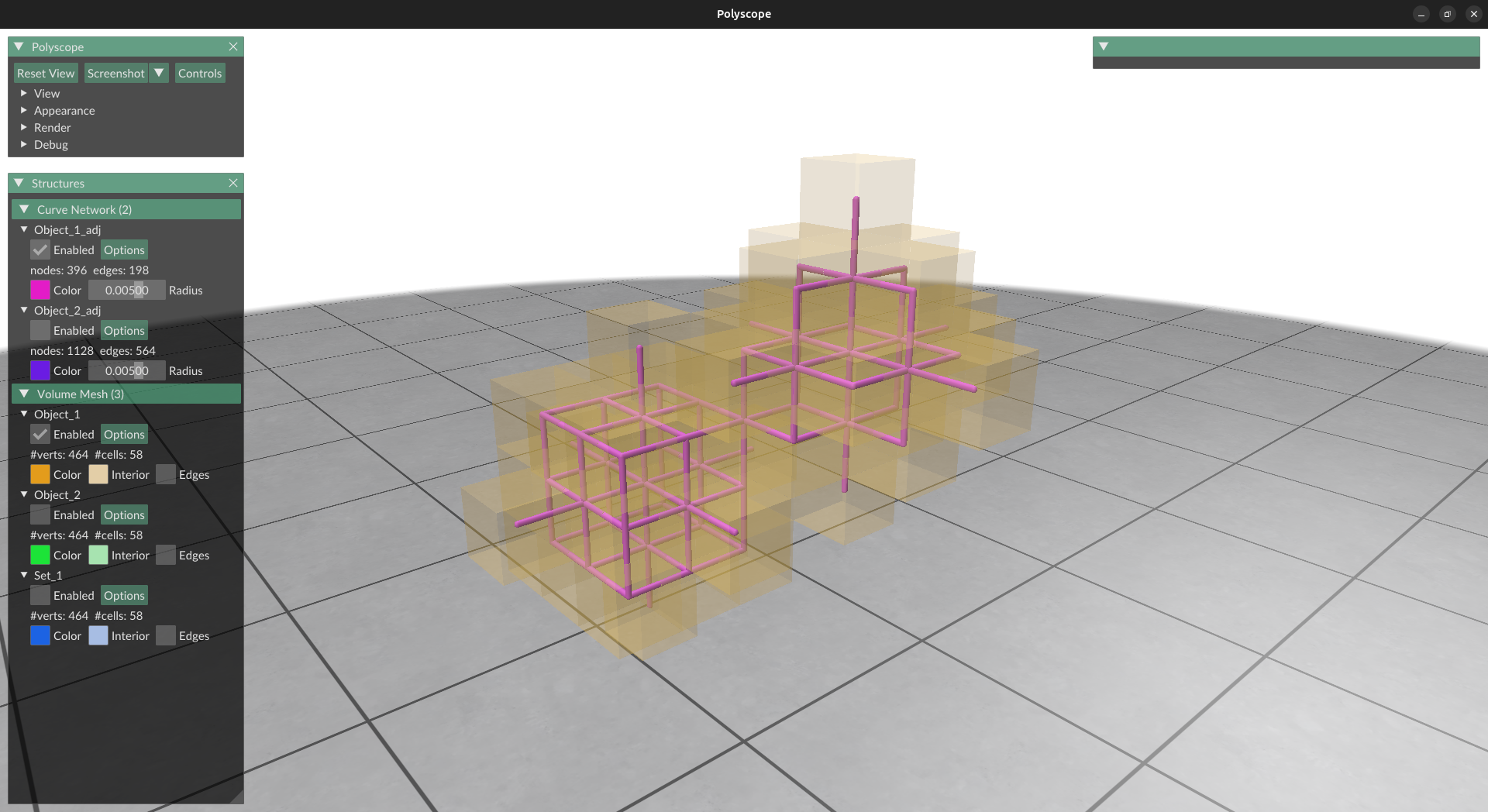

Example of 6-18 digital Adjacencies visualization with PolyscopeViewer.

See also

Drawmode selection: the example of digital objects in 3D

6-18 digital Adjacencies visualization with PolyscopeViewer.



#include <iostream>

#include "DGtal/base/Common.h"
#include "DGtal/io/Color.h"
#include "DGtal/helpers/StdDefs.h"
#include "DGtal/shapes/Shapes.h"
#include "DGtal/io/viewers/PolyscopeViewer.h"


using namespace std;
using namespace DGtal;
using namespace Z3i;


// Standard services - public :

int main( int argc, char** argv )
{
  PolyscopeViewer v;

  // Instructs the viewer to draw adjacencies relation whenever possible
  v.drawAdjacencies(true /* false */);

  Point p1( 0, 0, 0 );
  Point p2( 10, 10 , 10 );
  Domain domain( p1, p2 );

  DigitalSet shape_set( domain );
  Shapes<Domain>::addNorm1Ball( shape_set, Point( 5, 5, 5 ), 2 );
  Shapes<Domain>::addNorm2Ball( shape_set, Point( 3, 3, 3 ), 2 );

  v << shape_set;

  Object6_18 shape1( dt6_18, shape_set );
  Object18_6 shape2( dt18_6, shape_set );

  // Draws both the object the adjacencies
  v << shape1;
  v << shape2;

  v.show();
  return 0;
}
//                                                                           //
