io/viewers/viewer3D-9-3Dimages.cpp

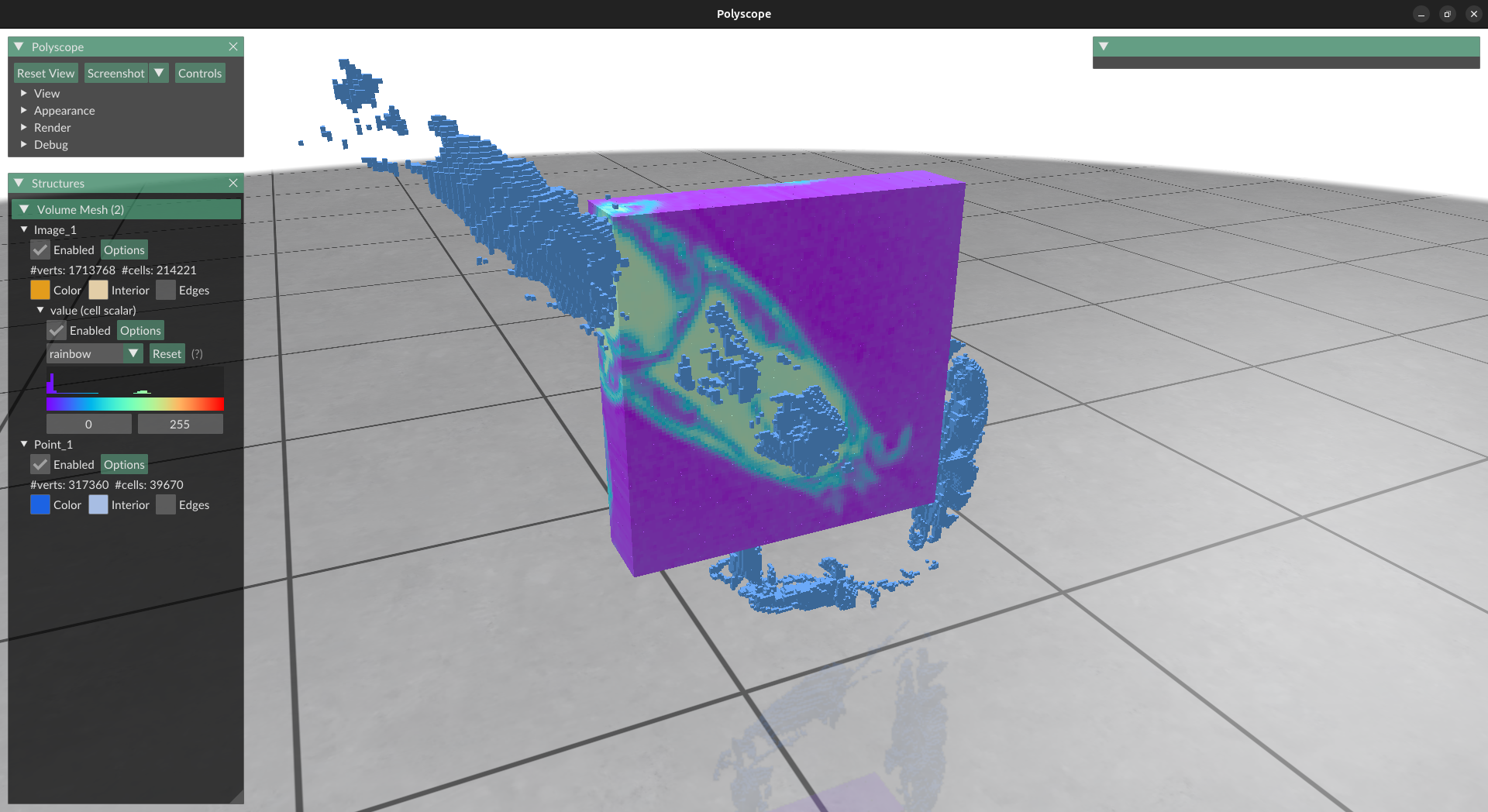

Illustration of the 3D image visualization.
#include <iostream>
#include "DGtal/base/Common.h"
#include "DGtal/io/readers/GenericReader.h"
#include "DGtal/images/ImageHelper.h"
#include "DGtal/images/Image.h"
#include "ConfigExamples.h"
#include "DGtal/helpers/StdDefs.h"
#include "DGtal/io/viewers/PolyscopeViewer.h"
#include "DGtal/io/Color.h"
using namespace std;
using namespace DGtal;
int main( int argc, char** argv )
{
PolyscopeViewer viewer;
std::string inputFilename = examplesPath + "samples/lobster.vol";
Image3D imageVol = GenericReader<Image3D>::import(inputFilename);
Z3i::Point ptLow (100, 100, 20);
Z3i::Point ptUpp (200, 200, 40);
Z3i::Domain subDomain(ptLow, ptUpp);
Z3i::Point ptLow2 (220, 50, 10);
Z3i::Point ptUpp2 (260, 100, 20);
Z3i::Domain subDomain2(ptLow2, ptUpp2);
Image3D imageCrop(subDomain);
Image3D imageCrop2(subDomain2);
// Adding too many single point is slow and will
// makke the view laggy
// This parameter allows to reuse some list if
// possible (but it won't work if multiples types are
// inserted)
viewer.allowReuseList = true;
for(Z3i::Domain::ConstIterator it= imageVol.domain().begin(), itend = imageVol.domain().end(); it != itend; ++it){
if(imageVol(*it)>140)
viewer << *it;
Z3i::Point pt = *it;
if(pt[0]>=ptLow[0] && pt[1] >= ptLow[1] && pt[2] >= ptLow[2] &&
pt[0]<=ptUpp[0] && pt[1] <= ptUpp[1] && pt[2] <= ptUpp[2]){
imageCrop.setValue(*it, imageVol(*it));
}
if(pt[0]>=ptLow2[0] && pt[1] >= ptLow2[1] && pt[2] >= ptLow2[2] &&
pt[0]<=ptUpp2[0] && pt[1] <= ptUpp2[1] && pt[2] <= ptUpp2[2]){
imageCrop2.setValue(*it, imageVol(*it));
}
}
viewer << imageCrop;
viewer.show();
return 0;
}
// //
void show() override
Starts the event loop and display of elements.
HyperRectDomain< Space > Domain
Definition StdDefs.h:172
Space::Point Point
Definition StdDefs.h:168
DGtal is the top-level namespace which contains all DGtal functions and types.
STL namespace.
static TContainer import(const std::string &filename, std::vector< unsigned int > dimSpace=std::vector< unsigned int >())
int main()
Definition testBits.cpp:56
