geometry/curves/convex-and-concave-parts.cpp

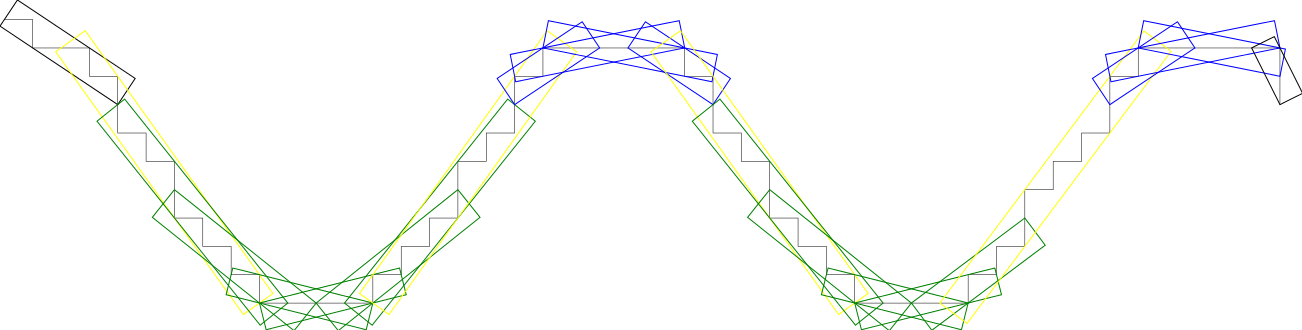

This example outputs the cover of an open digital curve by maximal DSSs. Maximal DSSs are displayed in blue, green, yellow in convex, concave, inflexion parts respectively. Ends are black. Convex (resp. concave) parts are defined as sequences of maximal DSSs of increasing (resp. decreasing) slope.

$ ./examples/geometry/curves/convex-and-concave-parts

Note that the chain code of the input digital curve may be passed as argument as follows:

$ ./examples/geometry/curves/convex-and-concave-parts 0300303303033030303000010101011010110100000303303033030303
Decomposition into convex and concave parts
See also
Digital straight lines and segments
and Analysis of one-dimensional discrete structures
